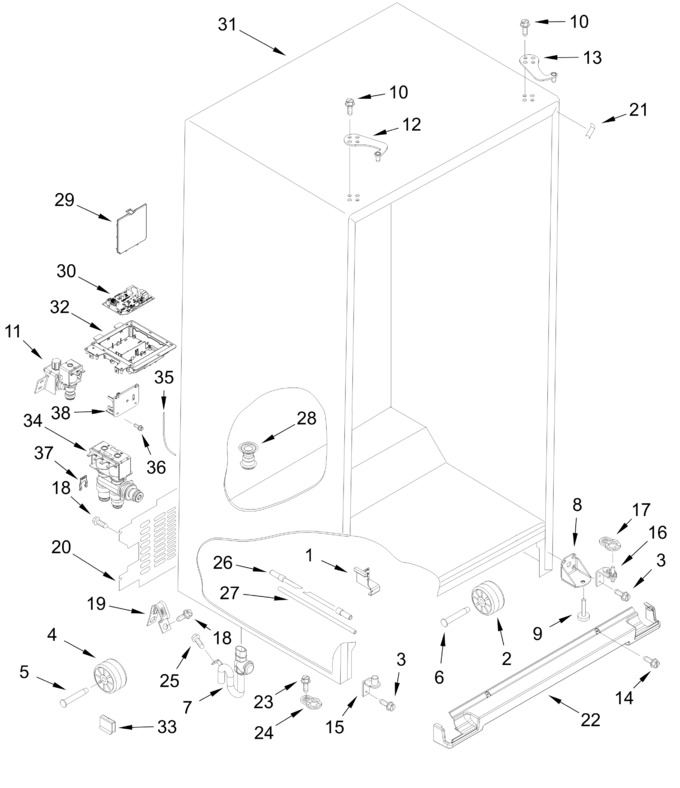

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10499011		Bracket, Wire Mounting			Immediately	$ 69.65
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
3	WPW10297485		Screw   (Replaces: W10297485)				$ 8.40
4	12477102		Roller, Rear			Immediately	$ 7.38
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
6	W11208384		Rivet, Roller   (Replaces: 981125)				$ 18.73
7	W11293072		Tube, Drain				$ 34.60
8	W11266052		Bracket, Foot   (Replaces: W10900758)				$ 66.31
9	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 8.24
10	W11579735		Screw, Top Hinge   (Replaces: W10290781)			Immediately	$ 14.73
11	W11512399		Valve, Inlet   (Replaces: W11451511)			Immediately	$ 51.22
12	W11590581		Hinge, Freezer Top (grey)   (Replaces: W10901054)				$ 24.93
13	W11409290		Hinge, Refrigerator Top (grey)   (Replaces: W10901049)				$ 70.48
14	WPW10308489		Screw (grey)   (Replaces: W10308489)			Immediately	$ 8.18
15	W11293374		Hinge, Freezer Bottom (grey)   (Replaces: W11126848)				$ 73.32
16	W11292872		Hinge, Refrigerator Bottom (grey)   (Replaces: W11084346)				$ 72.09
17	W11311687		Closer, Refrigerator Door (grey)   (Replaces: W10877804)				$ 14.07
18	WP488488		Screw   (Replaces: 489290)				$ 8.52
19	W11234470		Clamp, Plastic				$ 22.12
20	W11453073		Cover, Unit				$ 68.25
21	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
22	WPW10713153		Grille, Grey   (Replaces: W10713153)			Immediately	$ 135.52
23	WP489483		Screw   (Replaces: W10142234)				$ 11.41
24	W10876191		Closer, Freezer Door (grey)   (Replaces: W10770893)				$ 17.98
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
26	WPW10279882		Tube, Filter Inlet   (Replaces: W10279882)				$ 114.23
27	WPW10279884		Tube, Filter Outlet   (Replaces: W10279884)				$ 138.09
28	W10370680		Fitting, Drain				$ 37.83
29	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 85.16
30	W11670354		Control, Electronic   (Replaces: W11606656)				$ 327.38
31	ARI8576EDE2D568F203CA1E28095884C084		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	WPW10247993		Box, Control   (Replaces: W10247993)				$ 119.11
33	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 11.88
34	WPW10341320		Dual Water Valve Assembly   (Replaces: W10341320)			Immediately	$ 276.86
35	WPW10238092		Tube, Water   (Replaces: W10691732)			Immediately	$ 132.24
36	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
37	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 14.89
38	W10847867		Bracket, Water Valve   (Replaces: W10237915)				$ 80.75
	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 14.90
