Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11561286 Door Assembly, Stainless (includes Gasket And Dispenser Front Parts)   (Replaces: W11467374) Special Order $ 1,502.47

2 W11416489 Handle (stainless)   (Replaces: W10874780) Special Order $ 191.33

3 WP2182181 Thimble, Top   (Replaces: 2200086) Special Order $ 8.15

4 WPW10355585 Gasket, Door (grey)   (Replaces: W10249917) Special Order $ 337.27

5 WPW10661886 Screw   (Replaces: W10460893) In-Stock Immediately $ 12.88

6 WPW10430639 Bin, Door   (Replaces: W10430639) In-Stock Immediately $ 109.19

7 W10323148 Cover, Wire Special Order $ 42.25

8 W11293361 Wire, Jumper   (Replaces: W10850872) Special Order $ 140.89

9 W11573367 Bumper, Door (grey)   (Replaces: W10407188) In-Stock Immediately $ 23.35

10 WPW10632062 Cover, Door Stop (grey)   (Replaces: W10632062) Special Order $ 7.55

11 WPW10257206 Closer, Upper Cam Door (grey)   (Replaces: W10257206) In-Stock Immediately $ 13.18

12 W11293380 Bracket, Door Stop   (Replaces: W10910405) Special Order $ 69.21

13 WPW10296816 Screw   (Replaces: W10296816) Special Order $ 8.06


    View Diagram in Separate Window     Print Icon   Print Part List

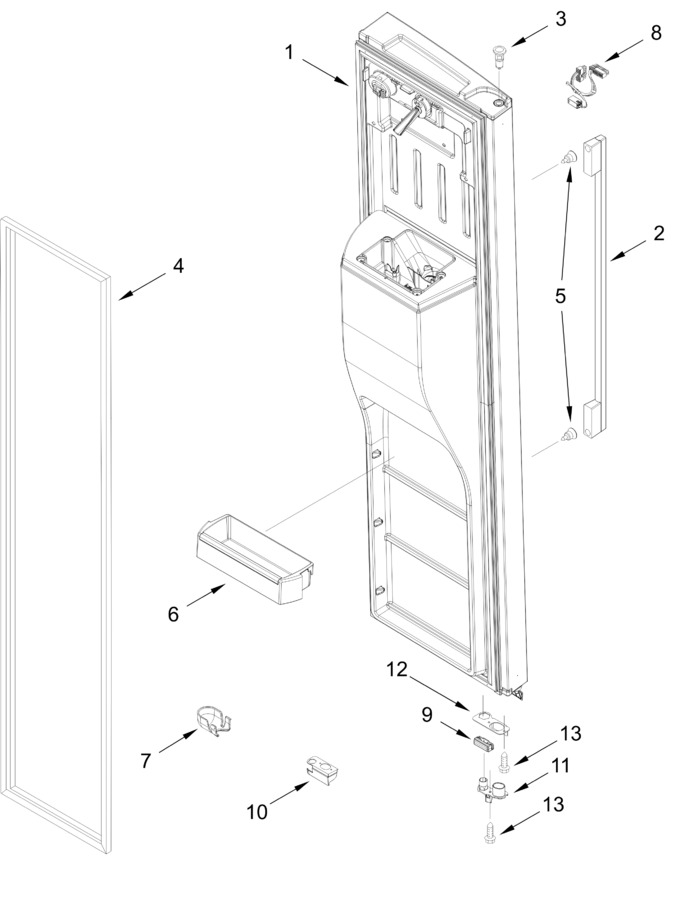

Diagram for WRSA71CIHZ04
