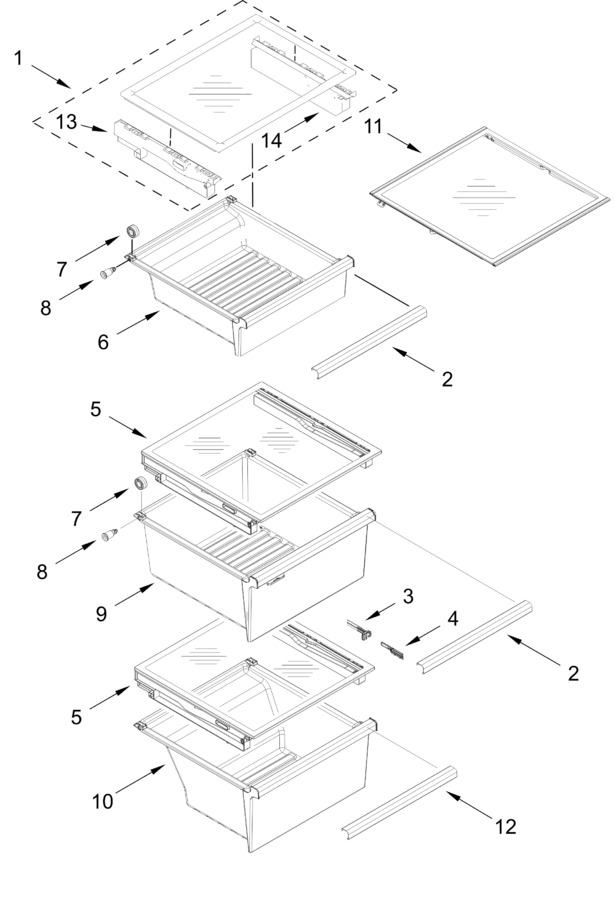

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10508311		Shelf, Snack Pan   (Replaces: W10508311)				$ 208.83
2	W11214890		Handle, Trim   (Replaces: W11034716)			Immediately	$ 86.34
3	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 30.50
4	W11746089		Housing, Humidity   (Replaces: W10282880)				$ 30.50
5	WPW10508334		Cover Assembly, Pan   (Replaces: W10508334)				$ 176.80
6	W11551764		Pan, Snack   (Replaces: W10256846)				$ 102.61
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
9	WPW10292504		Pan, Crisper   (Replaces: W10292504)			Immediately	$ 148.88
10	W11789833		Pan, Meat   (Replaces: W10256854)				$ 181.06
11	W11130200		Shelf Assembly   (Replaces: W10773885)				$ 235.29
12	W11214888		Handle, Trim   (Replaces: W11084209)				$ 86.34
13	W11766461		Track, Snack Pan (left Side)   (Replaces: W10247942)				$ 35.54
14	W11678966		Track, Snack Pan (right Side)   (Replaces: W10247940)				$ 22.68
