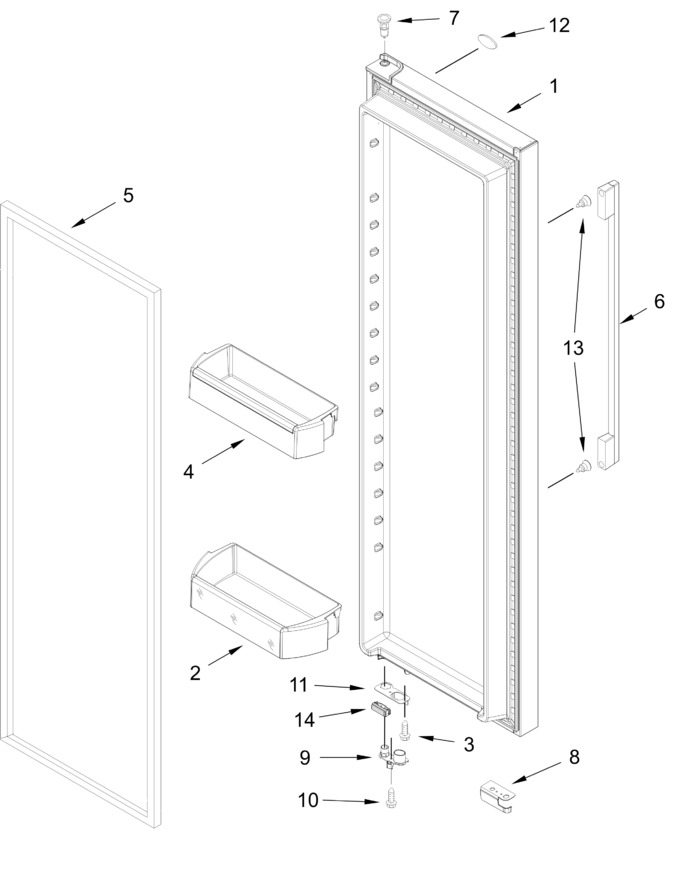

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11091610 | Door Assembly, Stainless (includes Gasket) (Replaces: W11091610) |
|
$ 855.34 | |||||
| 2 | WPW10710203 | Bin, Gallon Door (Replaces: W10710203) |
|
Immediately | $ 37.37 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10451873 | Bin, Shallow Door (Replaces: W10451873) |
|
$ 92.99 | |||||
| 5 | W10355582 | Gasket, Door (grey) (Replaces: W10249916) |
|
$ 341.26 | |||||
| 6 | W11416489 | Handle (stainless) (Replaces: W10874780) |
|
$ 191.33 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | W11661847 | Cover, Door Stop (grey) (Replaces: W10789147) |
|
Immediately | $ 31.71 | ||||
| 9 | WPW10257203 | Closer, Upper Cam Door (grey) (Replaces: W10257203) |
|
$ 12.96 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10888898) |
|
$ 80.24 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 14 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 |
