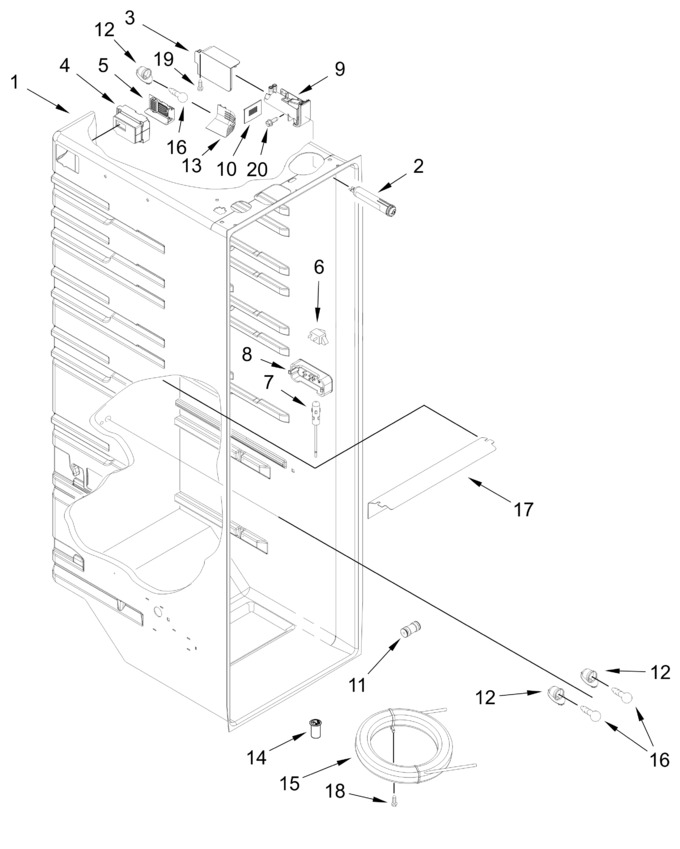

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI1BA464D72C84DA7297AB1B09D16F5BB3 | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 3 | W11501035 | Cover, Water Filter (Replaces: W11389740) |
|
$ 15.70 | |||||
| 4 | W11236851 | Air Diffuser Assembly (Replaces: W11175955) |
|
Immediately | $ 116.41 | ||||
| 5 | WPW10457601 | Cover, Air Diffuser (Replaces: W10457601) |
|
$ 157.21 | |||||
| 6 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 7 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 8 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 9 | WPW10394053 | Housing, Water Filter (Replaces: W10394053) |
|
Immediately | $ 139.80 | ||||
| 10 | WPW10457603 | Cover, Air Filter (Replaces: W10457603) |
|
$ 82.14 | |||||
| 11 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 12 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 13.87 | ||||
| 13 | W10893232 | Cover, Light |
|
- | |||||
| 14 | WP2210509 | Valve, Body Tube (Replaces: 2171931) |
|
$ 99.15 | |||||
| 15 | W11802492 | Tubing, Water Reservoir (Replaces: W11759888) |
|
$ 88.91 | |||||
| 16 | W11216993 | Lamp, Led (Replaces: W11125625) |
|
Immediately | $ 43.24 | ||||
| 17 | WPW10269099 | Lens, Light (Replaces: W10269099) |
|
$ 128.01 | |||||
| 18 | W10141518 | Screw |
|
$ 9.54 | |||||
| 19 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 9.05 | |||||
| 20 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 |
