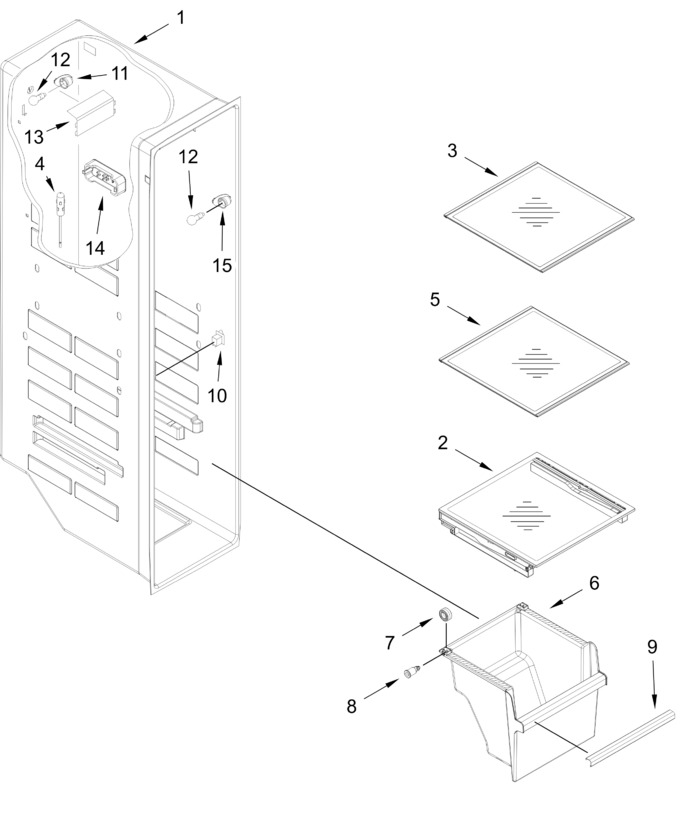

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARID4B24459AD3CE840514D8AC6D2EFEC61		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10836801		Cover Assembly, Pan   (Replaces: W10527863)				$ 192.37
3	W11130202		Shelf, Glass Upper   (Replaces: W10773886)				$ 235.29
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W11130203		Shelf, Glass Lower   (Replaces: W10773887)				$ 235.29
6	W11106313		Pan, Freezer (also Order Item 7)   (Replaces: W10260983)				$ 123.17
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
9	W11236850		Trim, Handle   (Replaces: W11034724)		Appelez-nous	-
10	W11396033		Switch, Light   (Replaces: W10847849)			Immediately	$ 37.30
11	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.87
12	W11216993		Lamp, Led   (Replaces: W11125625)			Immediately	$ 43.24
13	WPW10269101		Lens   (Replaces: W10269101)				$ 107.45
14	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
15	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
