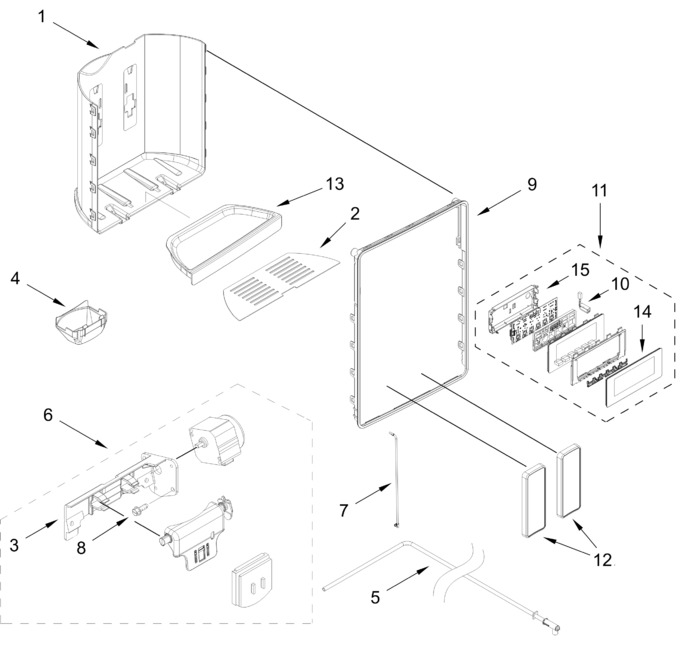

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10276226		Wall, Dispenser Back (satina)				$ 141.15
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 81.55
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	W11567542		Tube, Dual Dispenser Water   (Replaces: W10403778)		Appelez-nous	-
6	W11098702		Separator Assembly   (Replaces: W10781994)				$ 154.56
7	W11533098		Tube, Dispenser Water Valve   (Replaces: W11269258)		Appelez-nous	-
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W11087882		Ring, Trim (chromium Frost)				$ 70.05
10	W11290115		Led Assembly   (Replaces: W10238083)				$ 84.45
11	W11567938		Stealth User Interface Assembly   (Replaces: W11384535)				$ 345.30
12	W11624941		Pad, Ice And Water (grey)   (Replaces: W10370582)				$ 70.82
13	W10276225		Tray, Dispenser Drip (satina)				$ 74.06
14	W10458867		Cover, Front (black)				$ 302.83
15	W10254277		Cover, Board		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
