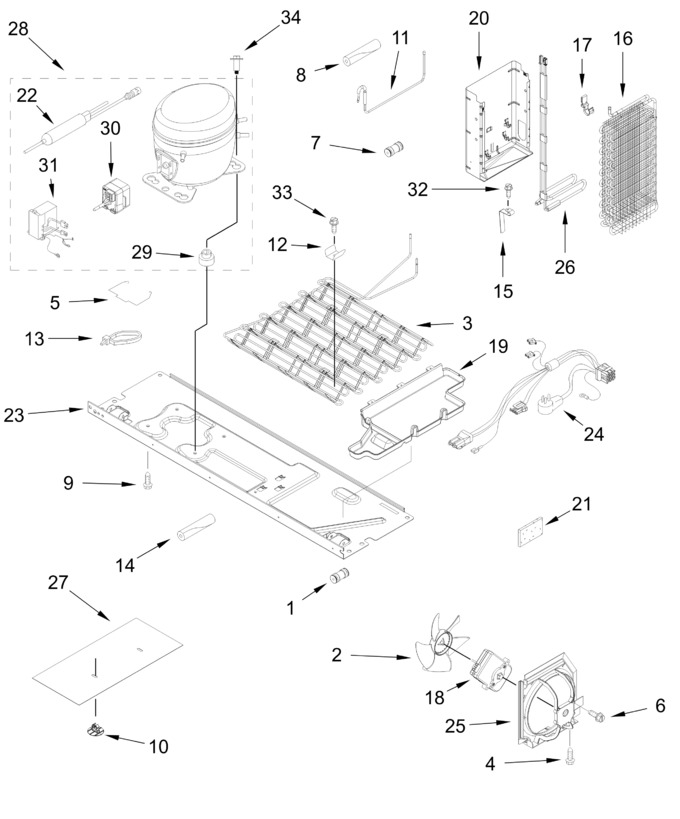

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11708426 | Condenser (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | 3400524 | Screw (Replaces: W10142287) |
|
$ 13.28 | |||||
| 10 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 11 | W11567939 | Tube, Suction (Replaces: W11506457) |
|
- | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 14 | W11505165 | Sleeve, Drier (Replaces: W11449167) |
|
- | |||||
| 15 | W11566486 | Probe, Heat (Replaces: W11399994) |
|
- | |||||
| 16 | W11546605 | Evaporator (Replaces: W11357917) |
|
Immediately | $ 253.33 | ||||
| 17 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 19 | W10714793 | Tray, Evaporator (includes Gasket) |
|
$ 164.33 | |||||
| 20 | W11400741 | Shield, Heat (includes Drain Pan) |
|
- | |||||
| 21 | W11553819 | Sound Insulation (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 22 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 30.78 | ||||
| 23 | W10680691 | Baseplate |
|
- | |||||
| 24 | W11293381 | Unit Wire Assembly (Replaces: W11025791) |
|
$ 149.44 | |||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 26 | W11546981 | Heater, Defrost (Replaces: W11355311) |
|
$ 133.28 | |||||
| 27 | W10284726 | Cover, Unit Bottom |
|
$ 115.91 | |||||
| 28 | W11580057 | Compressor (Replaces: W11369198) |
|
Immediately | $ 400.16 | ||||
| 29 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 8.51 | |||||
| 30 | W11547180 | Start Device, Combination (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 37.83 | ||||
| 31 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 32 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 33 | W11544659 | Screw (Replaces: W10376166) |
|
$ 14.35 | |||||
| 34 | W11417341 | Screw |
|
$ 14.07 | |||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| ARID19E8A45FC136F26803FCAC2CCB7051C | 55 Grams (r600a) |
|
- |
