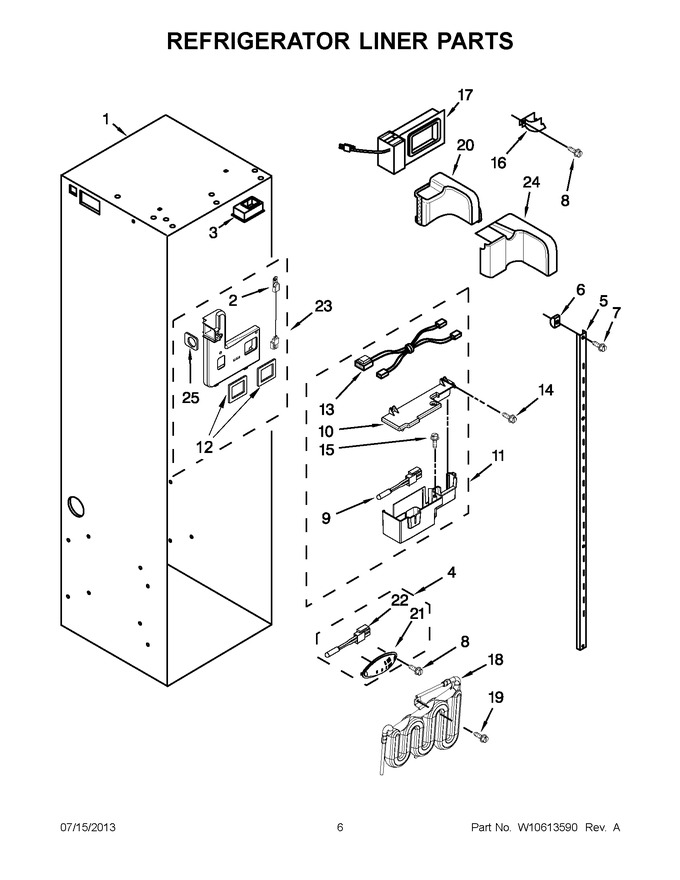

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP2306010		Thermistor   (Replaces: 2306010)			Immediately	$ 98.65
3	2208970		Air Duct				$ 144.19
4	WP2317844		Assembly, Thermistor   (Replaces: 2317844)				$ 10.84
5	WP2259077		Ladder, Shelf   (Replaces: 2259077)				$ 78.63
6	520965		Support, Ladder				$ 29.86
7	2006475		Screw (white)		Appelez-nous	-
8	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 7.79
9	WP2302937		Thermistor Assembly   (Replaces: 2302937)				$ 84.20
10	2302986		Lid, Baffle		Appelez-nous	-
11	WPW10169528		Assembly, Control Baffle   (Replaces: W10169528)				$ 321.50
12	2259398		Seal, Air Duct		Appelez-nous	-
13	2310205		Assembly, Meat Pan Wire		Appelez-nous	-
14	W11830745		Screw (stainless)   (Replaces: 8533929)		Appelez-nous	-
15	W11624204		Screw   (Replaces: 486194)				$ 14.02
16	2003577		Guard, Air Return		Appelez-nous	-
17	WP2221296		Air Baffle Assembly   (Replaces: 2221296)			Immediately	$ 392.93
18	W10645131		Reservoir, Water   (Replaces: 2327509)				$ 274.60
19	W10141518		Screw				$ 9.09
20	WP2309222		Assembly, Air Diffuser   (Replaces: 2309222)				$ 97.21
21	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 10.84
22	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
23	W10475010		Assembly, Spacer				$ 308.24
24	2309087		Cover, Air Diffuser		Appelez-nous	-
25	2259412		Seal, Air Duct		Appelez-nous	-
