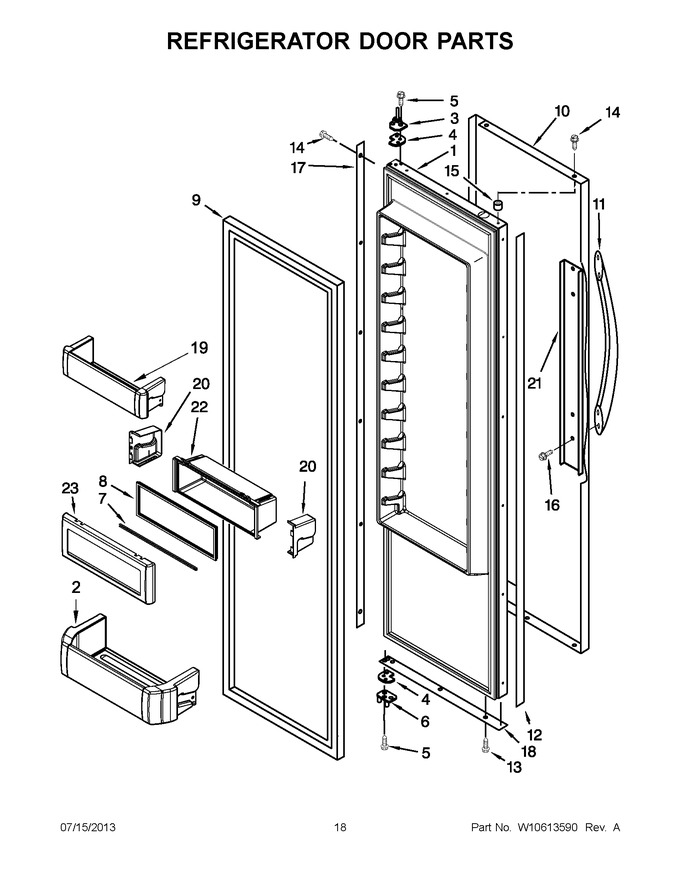

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193489 | Refrigerator Door Panel |
|
- | |||||
| 2 | W10323746 | Shelf, Door (gallon) |
|
$ 108.24 | |||||
| 3 | W11673500 | Assembly, Top Hinge (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom |
|
Immediately | $ 91.01 | ||||
| 7 | 2222795 | Rail, Utility Lid |
|
$ 84.11 | |||||
| 8 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 214.40 | |||||
| 9 | WP2266901 | Gasket, Door (Replaces: 2222810) |
|
$ 369.84 | |||||
| 10 | W10523738 | Skin, Door (stainless) |
|
- | |||||
| 11 | WP2316868 | Door Handle (stainless) (Replaces: 2316868) |
|
Immediately | $ 281.43 | ||||
| 12 | 2309060 | Spacer, Handle Side Door |
|
- | |||||
| 13 | W10759522 | Screw (stainless) (Replaces: 488568) |
|
$ 8.24 | |||||
| 14 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 15 | 2005433 | Spacer, Door Skin (top) |
|
$ 23.33 | |||||
| 16 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 17 | W10142296 | Spacer, Door |
|
- | |||||
| 18 | WP2257333 | Spacer, Door-skin (bottom) (Replaces: 2004933) |
|
$ 140.92 | |||||
| 19 | W10323598 | Bin, Door |
|
$ 104.79 | |||||
| 20 | WPW10323172 | End Cap (right Hand) (Replaces: W10323172) |
|
$ 8.60 | |||||
| 20 | WPW10323173 | End Cap (left Hand) (Replaces: W10323173) |
|
$ 8.60 | |||||
| 21 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 22 | WPW10323035 | Bin, Utility Center (Replaces: W10323035) |
|
$ 84.93 | |||||
| 23 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 75.81 |
