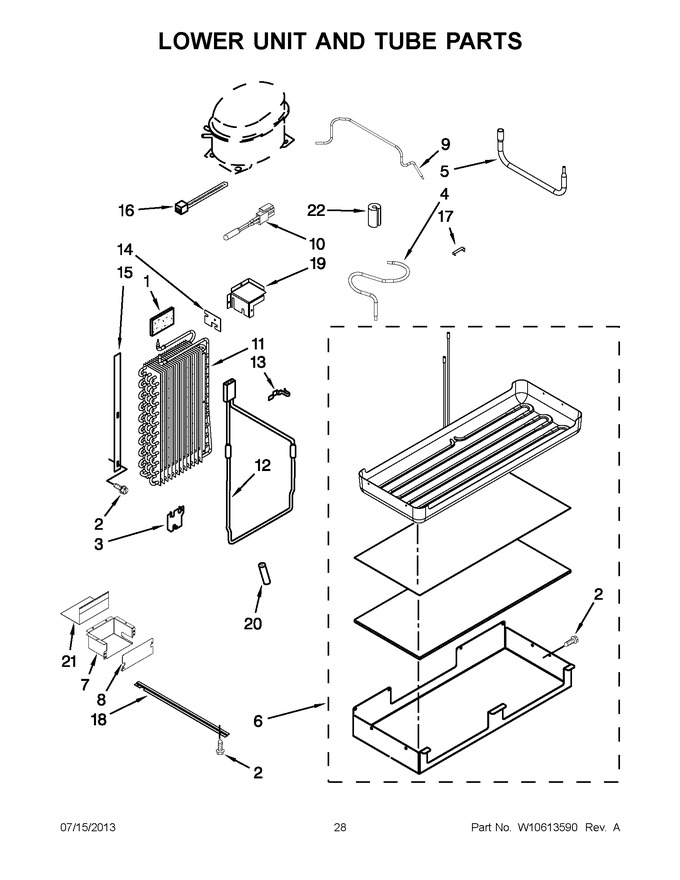

14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 14.77
2	W11624204		Screw   (Replaces: 486194)				$ 14.72
3	W10157752		Bracket, Heater		Appelez-nous	-
4	W10306442		Tube, Oil Trap Suction		Appelez-nous	-
5	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 40.48
6	W11623101		Drain Pan Assembly   (Replaces: W10281063)			Immediately	$ 394.02
7	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 81.52
8	W11756952		Cover, Wire Box   (Replaces: W10321048)		Appelez-nous	-
9	W10412487		Tube, Discharge		Appelez-nous	-
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
11	WPW10427991		Evaporator   (Replaces: W10427991)				$ 239.94
12	W10140160		Heater, Defrost		Appelez-nous	-
13	1113048		Clamp, Heater		Appelez-nous	-
14	W10139908		Cover, Evap Seal				$ 13.06
15	W10432308		Gasket, Evaporator		Appelez-nous	-
16	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 8.30
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
19	W10160981		Bracket, Air Return Assembly		Appelez-nous	-
20	2215648		Dampener				$ 13.21
21	W10321050		Shelf, Wiring Cover		Appelez-nous	-
22	W11715935		Grommet Air Return   (Replaces: W10413009)				$ 13.58
