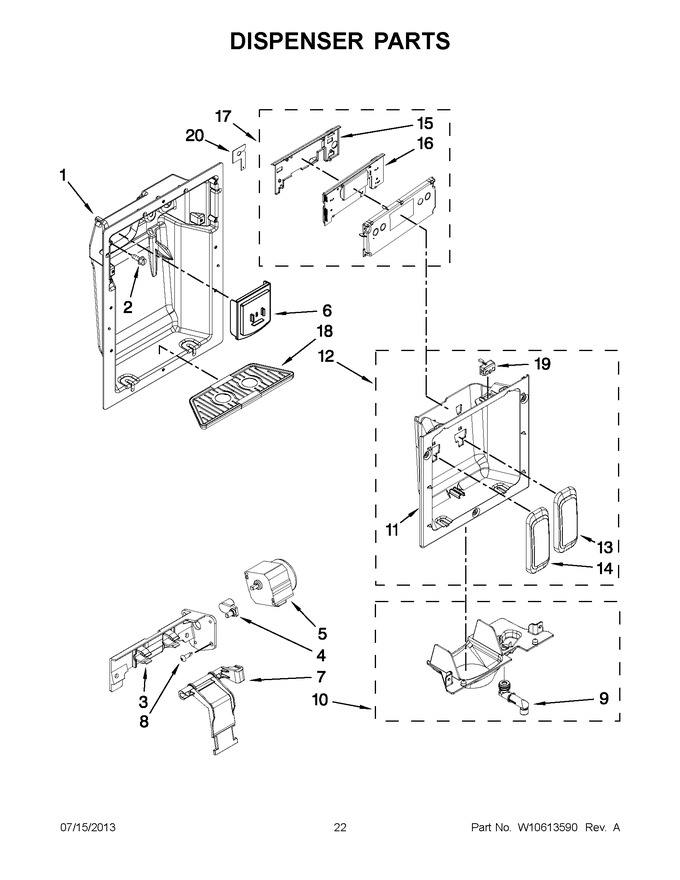

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11624204		Screw   (Replaces: 486194)				$ 14.02
3	W10542660		Bracket, Motor			Immediately	$ 88.82
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 96.97
5	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 102.48
6	WPW10504458		Door, Ice   (Replaces: W10504458)			Immediately	$ 24.19
7	W10542663		Support, Ice Door			Immediately	$ 80.68
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.49
9	WP2305235		Assembly, Spigot   (Replaces: 2305235)				$ 140.07
10	2318017		Assembly, Separator				$ 119.36
11	N/P		Housing, Middle (not Available Order Item 12)		Appelez-nous	-
12	WPW10260622		Assembly, Housing   (Replaces: W10260622)				$ 467.78
13	W10133603		Water, Paddle Assembly (universal Silver)   (Replaces: 2305307GN)			Immediately	$ 323.05
14	W10133603		Ice, Paddle Assembly (universal Silver)   (Replaces: 2305306GN)			Immediately	$ 323.05
15	2305219		Cover, Control				$ 88.56
16	WP2321746		Assembly, Ui Control Cover   (Replaces: 2321746)			Immediately	$ 303.66
17	WPW10151236		Assembly, Ui   (Replaces: W10151236)			Immediately	$ 493.83
18	W11177738		Drip Tray Assembly (universal Silver)   (Replaces: 2318062US)			Immediately	$ 73.61
19	W10222215		Assembly, Led   (Replaces: 2305342)				$ 147.18
20	2305447		Clip, Wiring		Appelez-nous	-
