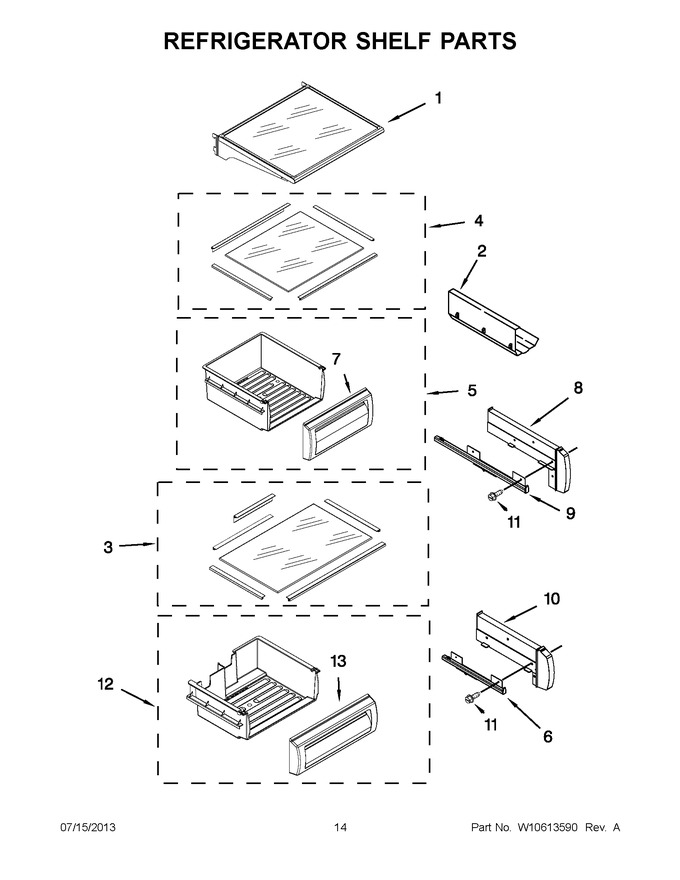

07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Dispenser Parts


12 - Top Grille And Unit Cover Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222591		Shelf Assembly		Appelez-nous	-
2	W10777924		Rack, Wine   (Replaces: 2179404)				$ 23.60
3	2302841		Assembly, Meat Pan Cover		Appelez-nous	-
4	2302834		Assembly, Crisper Cover		Appelez-nous	-
5	W10407623		Assembly, Crisper Pan		Appelez-nous	-
6	2302955		Slide, Meat Pan (right Hand)				$ 326.84
6	2302954		Slide, Meat Pan (left Hand)				$ 327.13
7	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 126.88
8	2256223		Spacer, Crisper (left Hand)				$ 80.47
8	2256222		Spacer, Crisper (right Hand)				$ 84.99
9	2302956		Slide, Crisper (left Hand)				$ 284.50
9	2302957		Slide, Crisper (right Hand)				$ 217.46
10	2256243		Spacer, Meat Pan (left Hand)				$ 79.09
10	2256244		Spacer, Meat Pan (right Hand)				$ 98.76
11	WP8533928		Screw Left Hand (stainless)   (Replaces: 8533928)			Immediately	$ 7.82
11	W11830745		Screw Right Hand (stainless)   (Replaces: 8533929)		Appelez-nous	-
12	W10407626		Assembly, Meat Pan		Appelez-nous	-
13	WP2256365		Assembly, Meat Pan Front   (Replaces: 2256365)				$ 165.25
