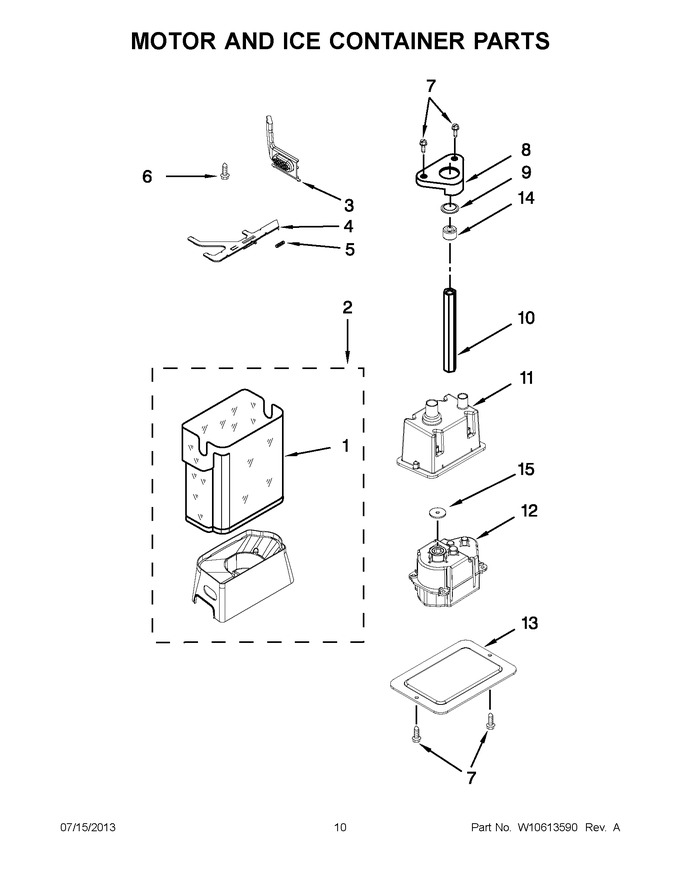

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10134781 | Bin, Lower Crusher |
|
$ 137.07 | |||||
| 2 | WPW10519441 | Ice Container Assembly (Replaces: W10395658) |
|
$ 348.39 | |||||
| 3 | WP2252265 | Button, Bin (Replaces: 2252265) |
|
$ 44.32 | |||||
| 4 | W10134784 | Latch, Bin |
|
- | |||||
| 5 | WP2198608 | Spring, Latch Idi Motor (Replaces: 2198608) |
|
$ 7.19 | |||||
| 6 | 2198671 | Screw (stainless) |
|
$ 10.40 | |||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 8 | WP2188919 | Clip, Shaft (Replaces: 2188919) |
|
$ 7.19 | |||||
| 9 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.97 | ||||
| 10 | WP2318082 | Drive Shaft (Replaces: 2318030) |
|
$ 99.42 | |||||
| 11 | W11404931 | Enclosure, Motor (Replaces: 2318011) |
|
Immediately | $ 65.25 | ||||
| 12 | 2315547 | Motor, Dispenser |
|
- | |||||
| 13 | 2318028 | Cover |
|
$ 102.66 | |||||
| 14 | WP2315559 | Bearing Sleeve (Replaces: 2315559) |
|
Immediately | $ 81.34 | ||||
| 15 | WPW10254073 | Washer (Replaces: W10254073) |
|
Immediately | $ 10.10 |
