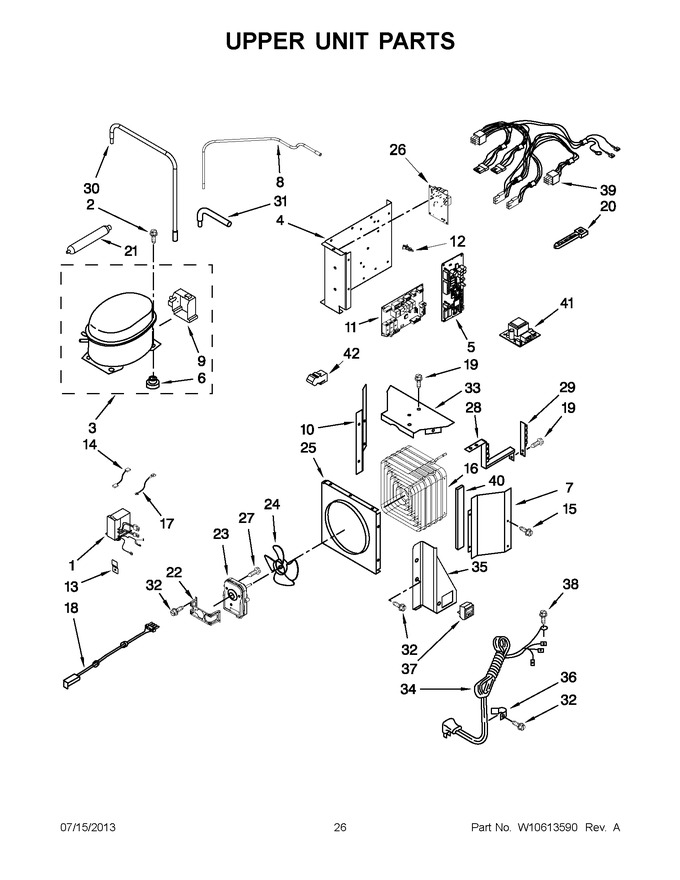

13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10449006		Inverter Box Assembly   (Replaces: W10449006)				$ 367.65
2	876811		Screw   (Replaces: 489373)				$ 7.42
3	8201675		Compressor   (Replaces: 2223801)			Immediately	$ 538.32
4	WPW10321056		Housing, Control Board   (Replaces: W10321056)				$ 120.57
5	WP2318054		Control. Electronic   (Replaces: 2318054)			Immediately	$ 314.13
6	876811		Grommet   (Replaces: 1100826)				$ 7.42
7	W10415668		Support, Condenser (right Hand)		Appelez-nous	-
8	W10321075		Tube, Tranisiton (cond/ht Loop)		Appelez-nous	-
9	2215676		Cover, Terminal				$ 89.87
10	W10415666		Support, Condenser (left Hand)		Appelez-nous	-
11	WPW10427079		Board, Control   (Replaces: W10427079)				$ 401.19
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 17.91
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	WPW10483905		Jumper, Inverter   (Replaces: W10483905)				$ 113.76
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
16	2307998		Condenser				$ 485.76
17	WPW10495645		Ground, Inverter   (Replaces: W10495645)				$ 12.09
18	2310207		Assembly, Condenser Fan Wire		Appelez-nous	-
19	WP489399		Screw   (Replaces: 489399)				$ 6.95
20	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.90
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	W10414681		Bracket, Fan Motor (condenser Fan)				$ 75.74
23	W11578915		Motor, Condenser   (Replaces: 2188875)			Immediately	$ 71.42
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 95.07
25	W10415670		Orifice, Fan		Appelez-nous	-
26	WPW10356040		Control, Electronic   (Replaces: W10356040)			Immediately	$ 307.45
27	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
28	2317031		Assembly, Bracket		Appelez-nous	-
29	2317030		Assembly, Arm		Appelez-nous	-
30	2307566		Tube, Drier Transition				$ 16.99
31	W10528578		Tube, Process				$ 37.92
32	W11624204		Screw   (Replaces: 486194)				$ 14.02
33	2309000		Cover, Condenser		Appelez-nous	-
34	WP2310251		Service Cord   (Replaces: 2310251)				$ 84.70
35	W10321055		Bracket, Mounting (power Switch)		Appelez-nous	-
36	549193		Clamp, Power Cord				$ 13.39
37	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 103.89
38	00487294		Screw   (Replaces: 487294)				$ 175.09
39	W10427091		Assembly, Unit Wire		Appelez-nous	-
40	2309432		Gasket, Condenser		Appelez-nous	-
41	WP2259350		Board, Power Supply   (Replaces: 2259350)				$ 138.43
42	2309431		Grommet				$ 13.55
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 105.25
NI	SF5516		Valve, Access   (Replaces: 978026)			Immediately	$ 18.94
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 130.71
NI	876764		Valve, Access			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (6.25 Oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
