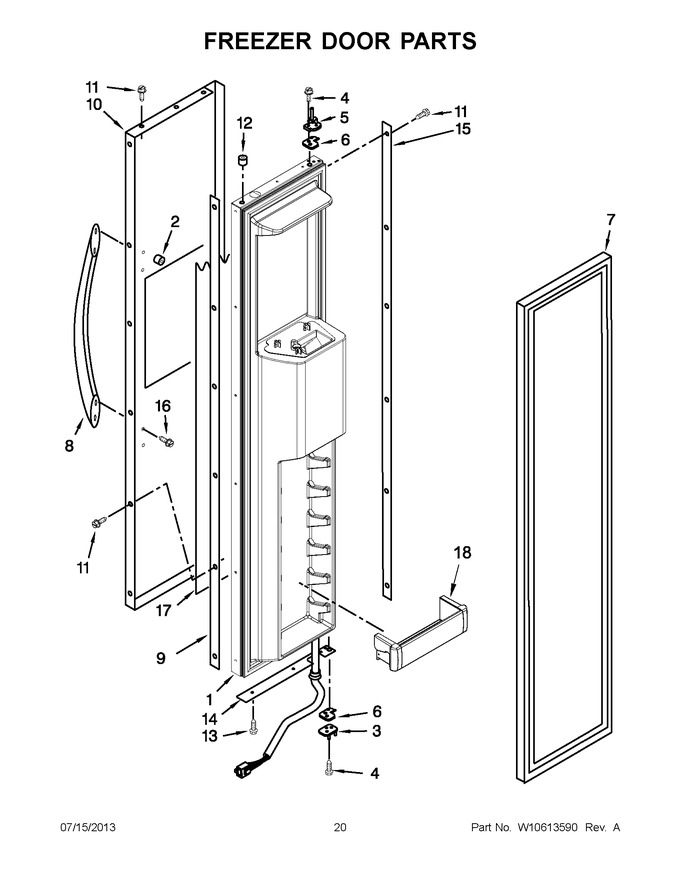

10 - Freezer Door Parts


11 - Dispenser Parts


12 - Top Grille And Unit Cover Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292431		Freezer Door		Appelez-nous	-
2	2252354		Spacer		Appelez-nous	-
3	W11752085		Assembly, Bottom Hinge   (Replaces: 2302879)				$ 60.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.02
5	W11673500		Assembly, Top Hinge   (Replaces: W10485980)			Immediately	$ 108.07
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 301.40
8	WP2316868		Door Handle (stainless)   (Replaces: 2316868)			Immediately	$ 268.03
9	2309060		Spacer, Handle Side Door		Appelez-nous	-
10	W10579049		Stainless   (Replaces: W10523757)				$ 1,920.99
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.88
12	2005433		Spacer, Door Skin (top)				$ 22.22
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.75
14	2257384		Spacer, Door-skin (bottom)		Appelez-nous	-
15	W10142296		Spacer, Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
17	2325197		Filler, Door (bottom)		Appelez-nous	-
17	2325196		Filler, Door (top)		Appelez-nous	-
18	W10323601		Bin, Door				$ 87.80
