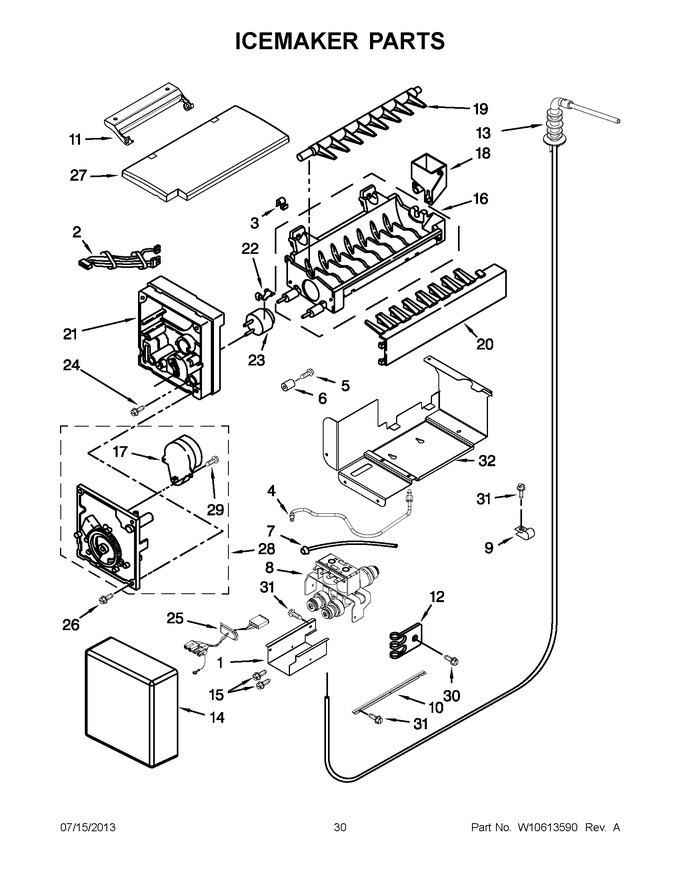

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320599		Shield, Valve		Appelez-nous	-
2	W10508670		Wire Assembly, Icemaker		Appelez-nous	-
3	WP628379		Clip, Thermal Fuse   (Replaces: 628379)				$ 10.57
4	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 64.66
5	WP489474		Screw   (Replaces: 489474)			Immediately	$ 7.97
6	2252354		Spacer		Appelez-nous	-
7	W11533506		Tube, Filter Outlet   (Replaces: W10437853)			Immediately	$ 31.57
8	WPW10159843		Valve, Solenoid   (Replaces: W10159843)			Immediately	$ 320.64
9	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.99
10	2320559		Support, Valve				$ 84.56
11	WP2198641		Bracket, Icemaker Cover   (Replaces: 2198641)				$ 7.19
12	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.18
13	W11212166		Fitting, Water   (Replaces: W10357286)			Immediately	$ 38.98
14	WPW10289690		Cover, Icemaker   (Replaces: W10289690)			Immediately	$ 8.40
15	WPW10141604		Screw   (Replaces: W10141604)				$ 8.43
16	WPW10122550		Assembly, Mold & Heater   (Replaces: W10122550)				$ 207.28
17	N/P		Motor, (not Serviceable Order Item 28)		Appelez-nous	-
18	WPW10272168		Cup-water Fill   (Replaces: W10272168)				$ 72.84
19	626753		Ejector				$ 13.94
20	WPW10272164		Ice Stripper   (Replaces: W10272164)				$ 100.98
21	WP2195914		Support, Housing   (Replaces: 2194712)				$ 104.57
22	WP2315522		Retainer Thermostat   (Replaces: 2315522)				$ 11.05
23	WP627985		Thermostat   (Replaces: W10290336)				$ 109.18
24	8533917		Screw				$ 13.37
25	W10139199		Wire Assembly, Smart Valve				$ 138.85
26	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
27	W10504752		Cover, Icemaker   (Replaces: 2317039)				$ 86.46
28	8201515		Assembly, Module   (Replaces: W10223929)			Immediately	$ 141.64
29	489136		Screw				$ 10.29
30	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
31	W11624204		Screw   (Replaces: 486194)				$ 14.02
32	2300167		Bracket, Icemaker Mounting		Appelez-nous	-
100	WPW10277449		Complete Icemaker Assembly   (Replaces: W10277449)				$ 263.04
NI	W10129081		Handle Kit For Previous Architect Series (stainless)				$ 242.61
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W10355016		Ss Cleaner		Appelez-nous	-
NI	W10355049		Ss Cleaning Wipes				$ 7.91
NI	REFDEODOR		Deodorizer Pack		Appelez-nous	-
NI	W10355010		Kitchen And Appliance Cleaner		Appelez-nous	-
