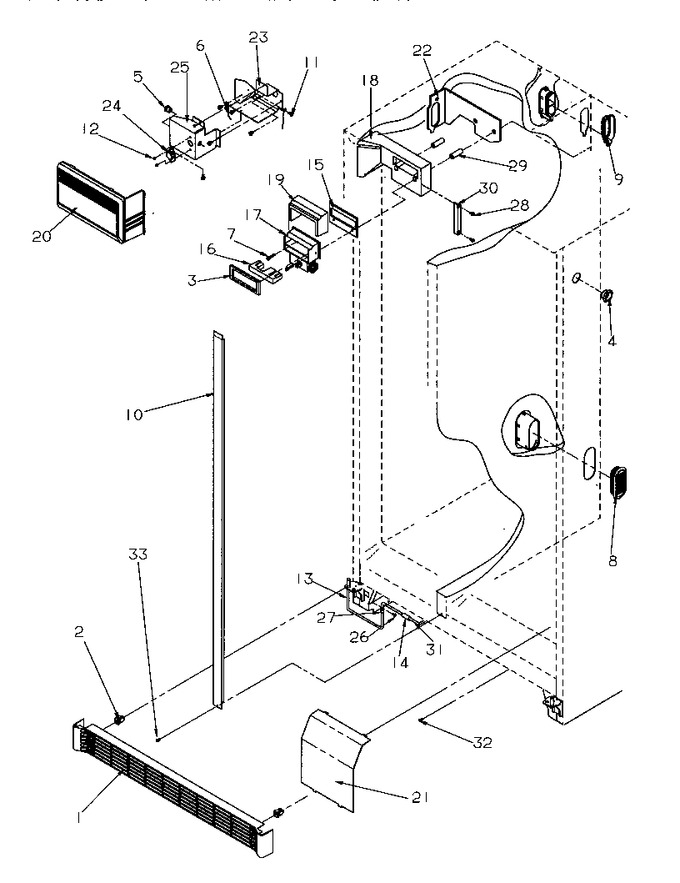

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10470301 | Kit, Toe Grille (blk) |
|
- | |||||
| 2 | M0117301 | Clip, Grille |
|
- | |||||
| 3 | 10383201 | Gasket, Damper |
|
- | |||||
| 4 | 10923101 | Tunnel, Retainer |
|
- | |||||
| 5 | A4554806 | Snap Bushing |
|
- | |||||
| 6 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 7 | M0216539 | Screw |
|
- | |||||
| 8 | D7785401 | Grille-rtn Air |
|
- | |||||
| 9 | 10178001 | Tunnel Air Supply |
|
- | |||||
| 10 | Y00000000 | See Note Vertical Mullion, White -- (see Note 1) |
|
- | |||||
| 11 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 12 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 13 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 14 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 81.22 | |||||
| 15 | B8345401 | Gasket, Damper |
|
- | |||||
| 16 | C8902601 | Insert, Control |
|
- | |||||
| 17 | D7832702 | Control-damper |
|
- | |||||
| 18 | 10176604 | Duct-waxed Air |
|
- | |||||
| 19 | D7788201 | Insulation |
|
- | |||||
| 20 | 10862709 | Cover-control |
|
- | |||||
| 21 | 10914201 | Cover-water Tank |
|
- | |||||
| 22 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 23 | D7822404 | Box, Bottom Control |
|
- | |||||
| 24 | C8983701 | Thermistor Domestic |
|
- | |||||
| 25 | D7832805 | Top, Cont. Box |
|
- | |||||
| 26 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 27 | M0108001 | Clamp, Tube |
|
- | |||||
| 28 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 29 | A3044208 | Spacer Damper |
|
- | |||||
| 30 | C8977301 | Clamp |
|
- | |||||
| 31 | B8372601 | Tube-plastic |
|
- | |||||
| 32 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 33 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 13.47 |
