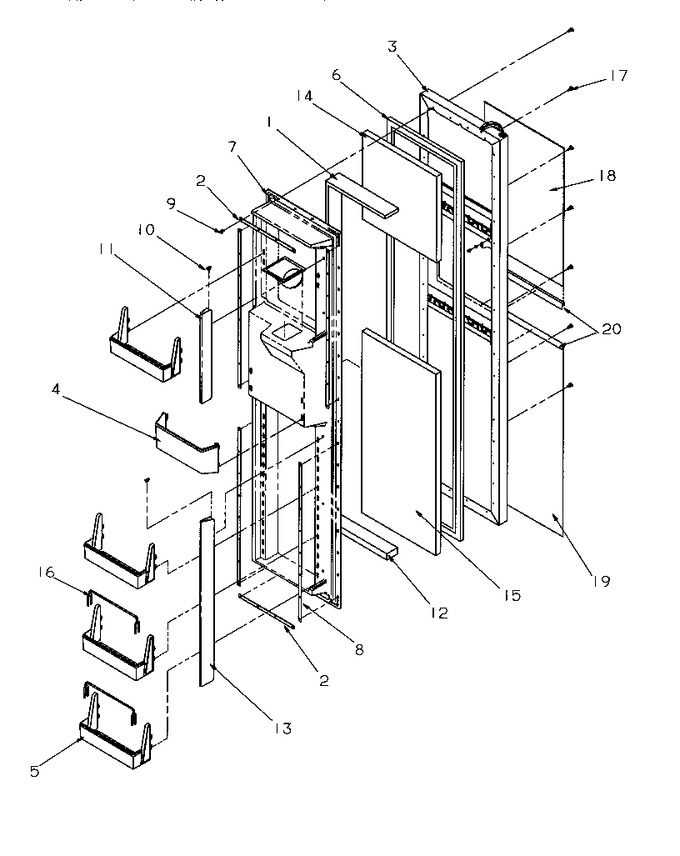

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523562		Insul. By The Ft.		Appelez-nous	-
2	C8982801		Retainer, Door Liner		Appelez-nous	-
3	10881207W		Assy, Fz Dr Fm		Appelez-nous	-
4	10534706		Shelf, Frz Door (half)		Appelez-nous	-
5	10525506		Shelf, Frz Door		Appelez-nous	-
6	10359702		Gasket (w Frz Dr)		Appelez-nous	-
7	10860801		Liner, Frz Dr I/w		Appelez-nous	-
8	D7828601		Retainer, Door Liner		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10063102		Clip, Door Dike		Appelez-nous	-
11	10063207		Dike, I & W		Appelez-nous	-
12	B0523563		Insulation Ft. K		Appelez-nous	-
13	10063208		Dike, I & W		Appelez-nous	-
14	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
15	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
16	10237602		Retainer, Package		Appelez-nous	-
17	10281002		Grommet, Screw		Appelez-nous	-
18	10704705		Panel-stainless		Appelez-nous	-
19	10704710		Panel-stainless		Appelez-nous	-
20	B8391218		Retainer-dec Pan		Appelez-nous	-
	NOTE:		R134a Refrigerant System: This Refrigeration System Incorporates R134a Refrigerant And Approved Service Techniques And Equipment Should Be Applied If Sealed S		Appelez-nous	-
