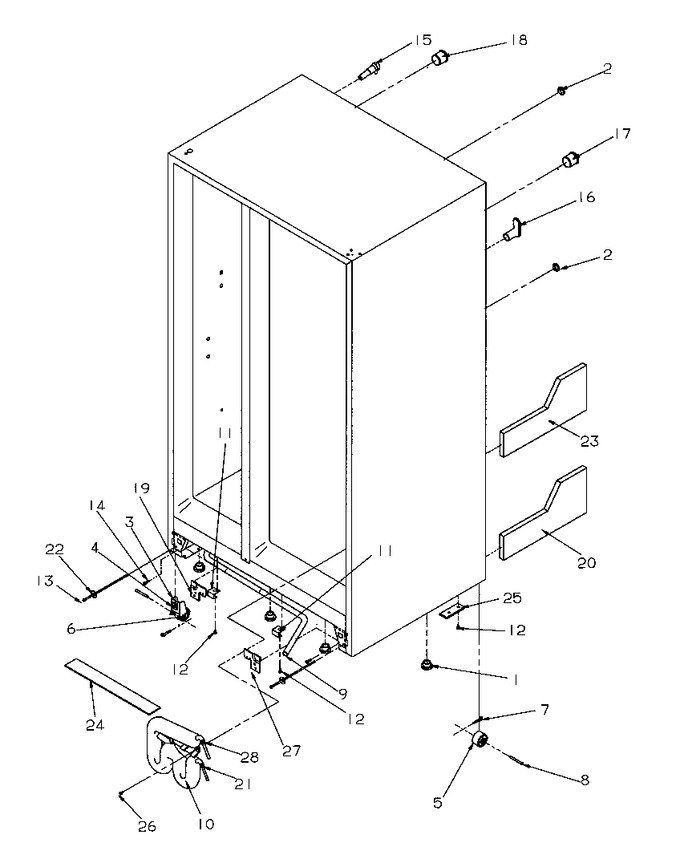

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	C8742401		Assy, Roller Bracket		Appelez-nous	-
4	M0286708		Nut, Speed				$ 47.85
5	M0520102		Roller		Appelez-nous	-
6	M1205302		Rivet				$ 5.85
7	M1200004		Cotter Pin K		Appelez-nous	-
8	M1200202		Pin K		Appelez-nous	-
9	10874701		Tube-drain		Appelez-nous	-
10	10988501		Kit, Water Tank		Appelez-nous	-
11	M0102303		Clamp		Appelez-nous	-
12	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
13	10093301		Screw, Adj Roller		Appelez-nous	-
14	M0204339		Screw Bolt K		Appelez-nous	-
15	12023401		Assy, Fill Tube		Appelez-nous	-
16	C8971902		Tunnel, Heat Ex.		Appelez-nous	-
17	10187501		Tunnel Wire		Appelez-nous	-
18	10187601		Tunnel Wire		Appelez-nous	-
19	10860102		Strip, Bot Hinge Tap		Appelez-nous	-
20	10906501		Insulation, R Foot		Appelez-nous	-
21	M0753002		Nut, Sleeve		Appelez-nous	-
22	M0274067		Washer, Nylon		Appelez-nous	-
23	10906503		Insulation, L.foot		Appelez-nous	-
24	10906506		Insul., Oc Bot		Appelez-nous	-
25	12021201		Baffle, Air		Appelez-nous	-
26	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
27	10860101		Strip, Bot Hinge Tap		Appelez-nous	-
28	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-
NI	10527501		Clip, Tube		Appelez-nous	-
NI	A4554806		Snap Bushing		Appelez-nous	-
