Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B0523590 Insul., Batt Appelez-nous -
2 10165101 Clip-tubular Appelez-nous -
3 D7832904 Cover,p.c. Board Appelez-nous -
4 10520406 Shelf, Chiller Appelez-nous -
5 10521806 Shelf-ref Door Appelez-nous -
6 10202001 Clip, Retainer Appelez-nous -
7 10271101 Insul. Batt. Appelez-nous -
8 10494505 Trim, Vertical Appelez-nous -
9 10861501 Liner-ref Dr Appelez-nous -
10 10898204W Assy Ref Dr Foam Appelez-nous -
11 12033201 Tunnel-air Appelez-nous -
12 10359701 Gasket, Door (w Ref) Appelez-nous -
13 10169004 Snugger, Shelf Appelez-nous -
14 10281002 Grommet, Screw Appelez-nous -
15 M0219730 Screw Special Order $ 7.65

16 M0232804 Screw Appelez-nous -
17 B0523585 Insulation Batt Per Foot Appelez-nous -
18 10519004 Frame-chiller Appelez-nous -
19 10519208 Door, Chiller Appelez-nous -
20 10520414 Shelf, Chiller Appelez-nous -
21 10310901 Tray, Butter Appelez-nous -
22 10436404 Lid, Utility Special Order $ 60.85

23 10423128 Bin-utility Appelez-nous -
24 10883901 Bucket-beverage Appelez-nous -
25 10883802 Shelf, Dairy Appelez-nous -
26 B5629063 Insulation Batt Appelez-nous -
27 10884001 Track, Dairy Dr Appelez-nous -
28 10884002 Track, Dairy Dr Appelez-nous -
29 10704704 Panel-stainless Appelez-nous -
30 10162101 Glide-igloo Door Appelez-nous -
31 10883701 Door-dairy Appelez-nous -
32 B5612028 Insulation Batt Appelez-nous -
33 B5629064 Insulation, Batt Appelez-nous -
34 B5629065 Insulation, Batt Appelez-nous -
35 10436505 Tray, Egg Appelez-nous -
36 R0195042 Double Backed Tape 6ft Roll Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

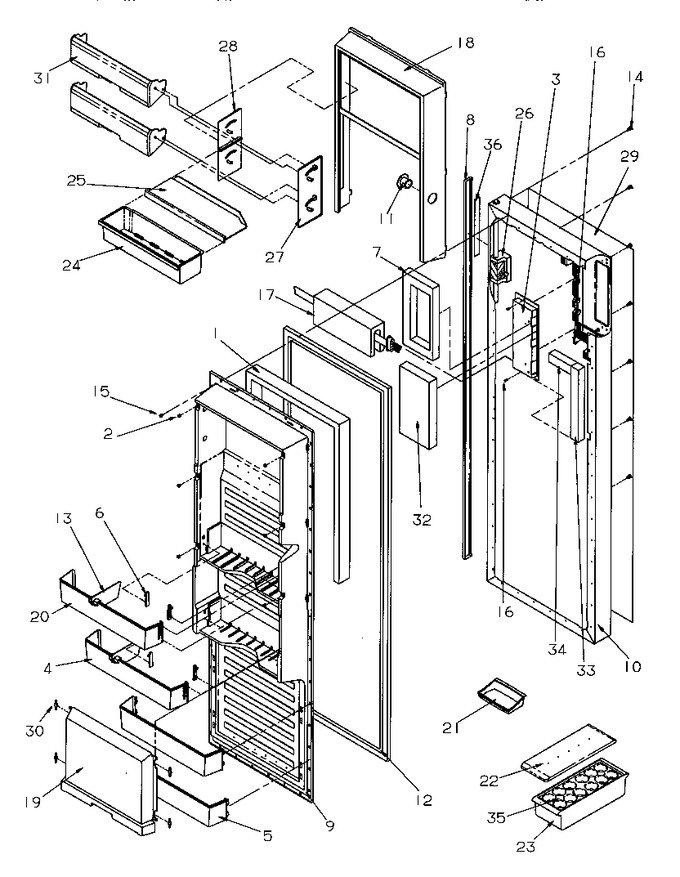

Diagram for GSDE3201SW (BOM: P1190901W W)
