Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B5733302 Clip, Ground Appelez-nous -
2 12011901 Basket, 11`` Freezer Appelez-nous -
3 12012101 Shelf, Freezer Wire Appelez-nous -
4 WPA3073101 Bulb 120v. 40w.   (Replaces: A3079001) In-Stock Immediately $ 12.72

5 D7753503 Plate-light Socket Appelez-nous -
6 D7786602 Shield, Light Appelez-nous -
7 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

8 18805 Switch   (Replaces: C3680306) Special Order $ 21.59

9 D7749002 Cover Light Appelez-nous -
10 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

11 M0219546 Screw Appelez-nous -
12 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

13 12012901 Rail, L. Dbl Shelf Appelez-nous -
14 10991601 Rail- R Double Appelez-nous -
15 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

16 M0580007 Grommet, Screw Appelez-nous -
17 10535601 Harness-fz Liner Appelez-nous -
18 10796001 Socket, Dual Lamp Appelez-nous -
19 D7297603 Cover, Light Sw Appelez-nous -
20 D7716407 Housing-ref Light Appelez-nous -
21 10281601 Socket-light Appelez-nous -
22 10870801 Shelf, Ice Cream Appelez-nous -
23 10991401 Rail- R Shelf Appelez-nous -
24 10270203 Housing, Light Appelez-nous -
25 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

26 12011701 Basket, 3`` Freezer Appelez-nous -
27 Y10270101 Cover-light Appelez-nous -
28 D7714404 Socket-light Appelez-nous -
29 A3189337 Gasket Appelez-nous -
30 10014716 Shield, Light Appelez-nous -
31 10493201 Cover, Ref. Light Appelez-nous -
32 M0270508 Washer Appelez-nous -
33 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

34 12012801 Rail, L. Shelf Appelez-nous -
35 12011801 Basket, 7`` Freezer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

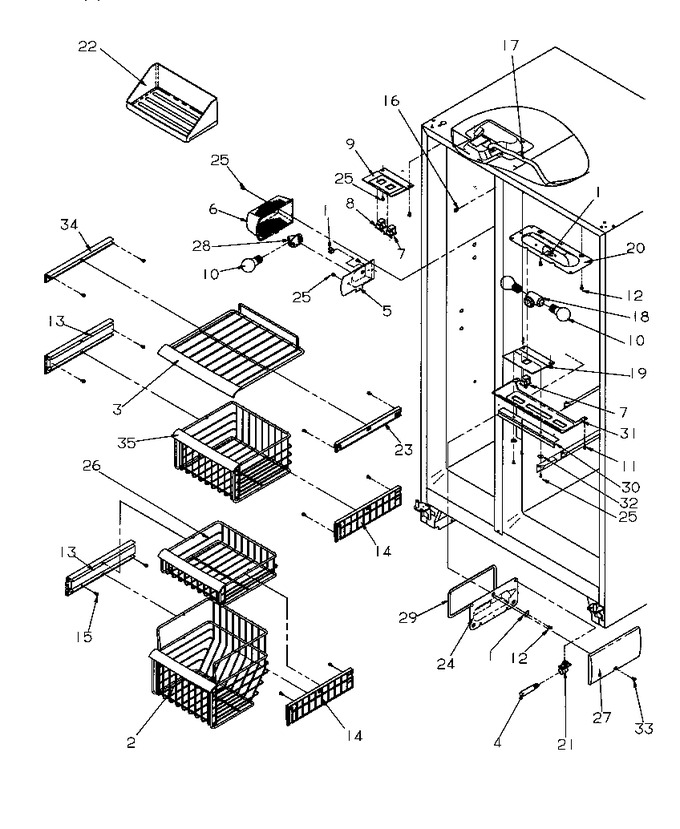

Diagram for GSDE3201SW (BOM: P1190901W W)
