Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B8386607 Gasket (1=1ft.) Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
4 10655904 Evap Cover-e Ct Appelez-nous -
5 D7821154 Inner Fz Bk-pnt Appelez-nous -
6 10554701 Harness-ref Liner Appelez-nous -
7 D7838302 Cover, Supply Air Appelez-nous -
8 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

9 M0560005 Support Appelez-nous -
10 12017803 Kit, Thermostat Appelez-nous -
11 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

12 M0322202 Tie Wire Appelez-nous -
13 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

14 10164808 Grille, Control Appelez-nous -
15 A3127412 Ext. Fill Tube Appelez-nous -
16 10098801 Rivet Appelez-nous -
17 B8386608 Gasket Appelez-nous -
18 10893802 Shield, Evap Appelez-nous -
19 D7850202 Drip Tray Pnt. Appelez-nous -
20 A3030361 Gasket Appelez-nous -
21 10629601 Block, Air Coil (left) Appelez-nous -
22 10629001 Block, Air Coil (right) Appelez-nous -
23 A3189335 Gasket Foam Appelez-nous -
24 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

25 WP12049801 Heater, Evap   (Replaces: 10428405) Special Order $ 149.50

26 R0170057 Assy,low Side Appelez-nous -
27 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

28 10890202 Evap Fan Shroud Appelez-nous -
29 R0000199 Fan-evap/5.250   (Replaces: 10890101) Special Order $ 166.01

30 10656101 Brkt Mtr Appelez-nous -
31 10654206 Motor, Evap Fan Appelez-nous -
32 10656001 Brk`t-mtr Mt/lw Appelez-nous -
33 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

34 M0580002 Grommet A Appelez-nous -
35 10164702 Control-air Appelez-nous -
36 C8983701 Thermistor Domestic Appelez-nous -
37 10426801 Clip, Air Tunnel Appelez-nous -
38 10527401 Clip, Evap Appelez-nous -
39 10623003 Clip, Evaporator Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

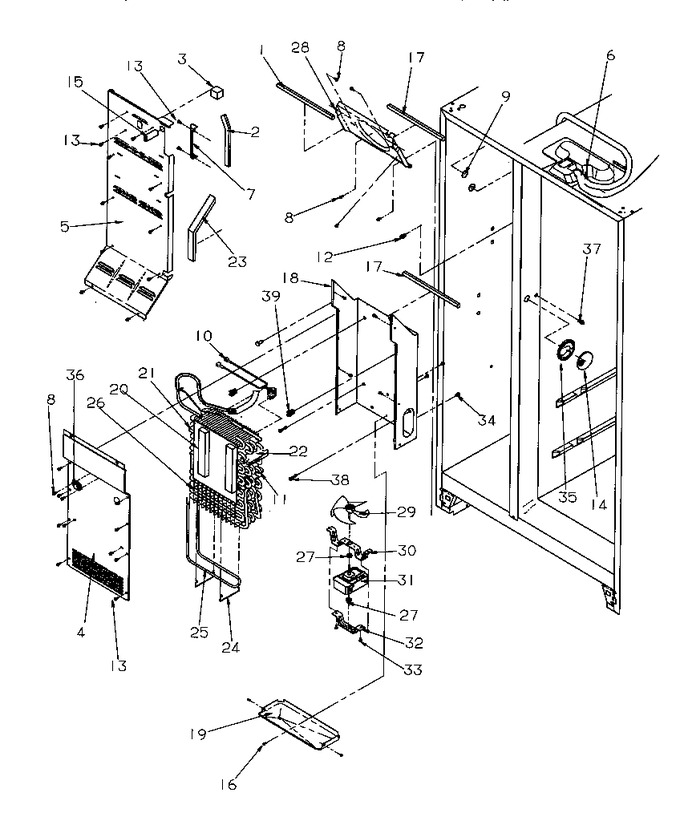

Diagram for GSDE3201SW (BOM: P1190901W W)
