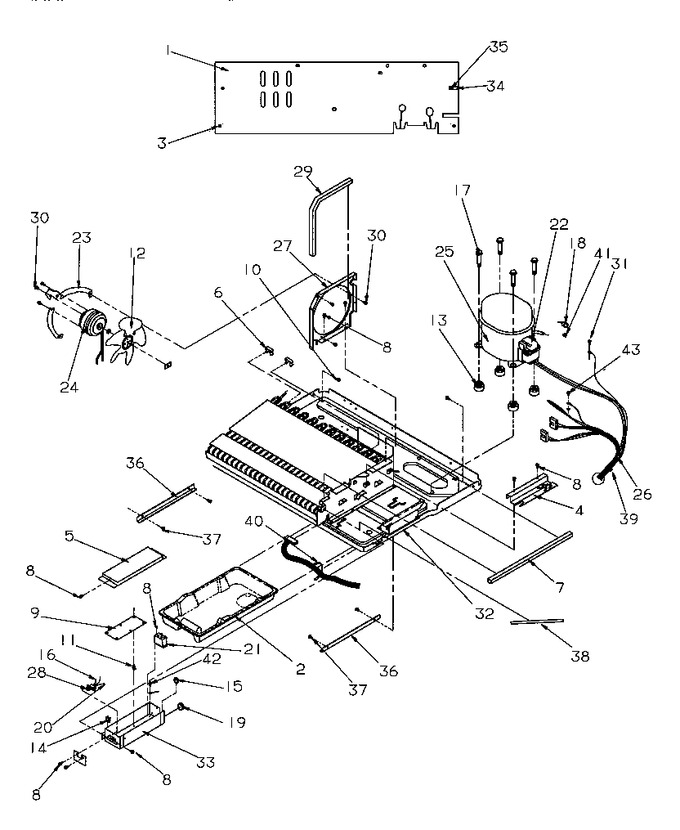

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7788909 | Ass`y, Mc Back |
|
- | |||||
| 2 | 10845601 | Pan, Drain |
|
- | |||||
| 3 | M0201216 | Screw - Sm |
|
- | |||||
| 4 | 10845302 | H.v. Box Shelf-e Ct |
|
- | |||||
| 5 | 10276906 | Top, Hv Box |
|
- | |||||
| 6 | 10874601 | Clip-cond. |
|
- | |||||
| 7 | A3030358 | Gasket-foam |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 9 | 10627301 | Board, H.v. Pc |
|
- | |||||
| 10 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 | |||||
| 11 | M0585502 | Support-pc Board |
|
- | |||||
| 12 | B5742602 | Blade, Fan |
|
- | |||||
| 13 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 14 | B5733302 | Clip, Ground |
|
- | |||||
| 15 | M0585702 | Clamp, Wire |
|
- | |||||
| 16 | D7383454 | Wire, Jumper |
|
- | |||||
| 17 | M0221523 | Screw, Shldr |
|
- | |||||
| 18 | 10377015 | Overload |
|
- | |||||
| 19 | A3293504 | Bushing, Snap |
|
- | |||||
| 20 | D7383455 | Wire, Jumper |
|
- | |||||
| 21 | WP65889-4 | Capacitor (Replaces: C8931604) |
|
Immediately | $ 61.14 | ||||
| 22 | 10757301 | Cover, Terminal |
|
- | |||||
| 23 | C8982102 | Brkt,cond. Mtr |
|
- | |||||
| 24 | 833697 | Motor, Fan (Replaces: 10884501) |
|
Immediately | $ 88.15 | ||||
| 25 | W10309994 | Kit,compressor-tpb1390yxa (Replaces: 10927303) |
|
Immediately | $ 643.55 | ||||
| 26 | 10949501 | Harness Mc |
|
- | |||||
| 27 | 10845504 | Cond. Fn Shrd |
|
- | |||||
| 28 | 10544502 | Switch, Slide |
|
- | |||||
| 29 | 10851301 | Insulation, Tube |
|
- | |||||
| 30 | M0223803 | Screw |
|
- | |||||
| 31 | M0253916 | Screw |
|
- | |||||
| 32 | 10883404 | Assy, Cond/pan E-ct |
|
- | |||||
| 33 | 10277018 | H V Box-e Ct |
|
- | |||||
| 34 | M0108001 | Clamp, Tube |
|
- | |||||
| 35 | 10899001 | Flap-protective |
|
- | |||||
| 36 | C8913701 | Support, Mc |
|
- | |||||
| 37 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.75 | ||||
| 38 | B5759645 | Gasket, Sealing |
|
- | |||||
| 39 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 40 | M0585203 | Tie, Wire |
|
- | |||||
| 41 | WP10097202 | Ptc Relay (Replaces: 10097202) |
|
$ 124.93 | |||||
| 42 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 43 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 |
