SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls And Cabinet (ref/frz)


03 - Crushed Ice Bucket


04 - Door Hinge And Trim (ref)


05 - Drain And Rollers


06 - Evap And Air Handling


07 - Fz Door


08 - Fz Door


09 - Fz Shelving & Ref Light


10 - Ice And Water Cavity


11 - Ice Maker


12 - Machine Compartment


13 - Ref Door


14 - Shelving And Drawers (ref)

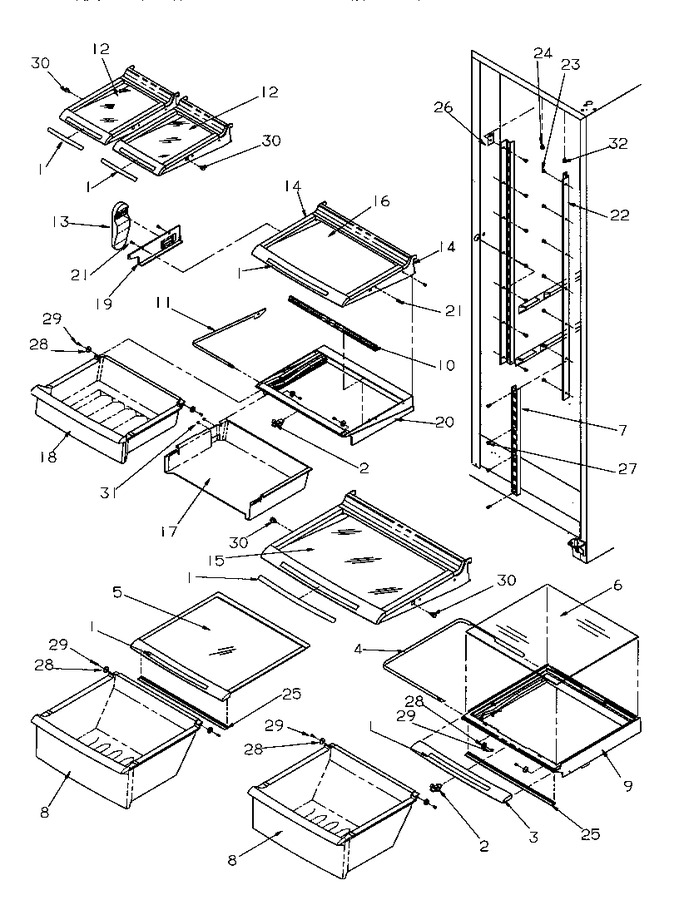

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10954019		Insert-shelf Full		Appelez-nous	-
1	10954018		Insert, Shelf		Appelez-nous	-
1	10954021		Insert-shelf Crsp		Appelez-nous	-
1	10954020		Insert-shelf Deli		Appelez-nous	-
2	10852501		Slide, Crisper/deli		Appelez-nous	-
3	10872201		Trim, Crisper Frt		Appelez-nous	-
4	10882701		Band, Crisper		Appelez-nous	-
4	10882702		Band-crisper		Appelez-nous	-
5	10783101		Shelf- Top Crisper		Appelez-nous	-
6	Y10370065		Glass-shelf		Appelez-nous	-
7	D7599003		Ladder, Center		Appelez-nous	-
8	10783301		Pan, Crisper		Appelez-nous	-
8	10783201		Pan,crisper		Appelez-nous	-
9	10783001		Frame-crisper		Appelez-nous	-
9	10782901		Frame,crisper		Appelez-nous	-
10	10873801		Extrn.-rear Deli		Appelez-nous	-
11	10986402		Band-deli		Appelez-nous	-
12	10809711		Shelf, Split Guide		Appelez-nous	-
13	10872701		Gasket, Deli		Appelez-nous	-
14	10809908		Rail, R Blank Side		Appelez-nous	-
14	10809907		Rail, L Blank Side		Appelez-nous	-
15	10809501		Shelf Full Glide		Appelez-nous	-
16	10809505		Shelf-full Gli Out		Appelez-nous	-
17	10783901		Sleeve,deli		Appelez-nous	-
18	10784101		Pan,deli		Appelez-nous	-
19	10872601		Manifold, Deli		Appelez-nous	-
20	10783702		Frame, Deli		Appelez-nous	-
21	M0238229		Screw		Appelez-nous	-
22	D7789809		Ladder, Cantilever		Appelez-nous	-
22	D7789808		Ladder, Cantilever		Appelez-nous	-
23	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
24	M0580007		Grommet, Screw		Appelez-nous	-
25	10968801		Seal-crisp Front		Appelez-nous	-
26	C8992302		Brkt-control Cover		Appelez-nous	-
27	M0230923		Screw		Appelez-nous	-
28	10481001		Roller, Pan				$ 10.99
29	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
30	10875101		Stop, Shelf		Appelez-nous	-
31	M0051701		Pad-bumper		Appelez-nous	-
32	M0581001		Grommet, Screw		Appelez-nous	-
NI	10882802		Ass`y, Crisp Frame		Appelez-nous	-
NI	10883301		Ass`y, Split Glide Shelf		Appelez-nous	-
NI	10883302		Ass`y, Full Glide Shelf		Appelez-nous	-
NI	10882801		Assy, Crisper Frame		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
