Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8992901 Clip Appelez-nous -
2 10504101 Chute, Ice Appelez-nous -
3 10870301 Insul.-i & W Cavity Appelez-nous -
4 B0523596 Insul. By The Ft. Appelez-nous -
5 D7791003 Gasket Cavity Appelez-nous -
6 B5667304 Wire Clip Appelez-nous -
7 10533002 Switch, Limit (water Disp) Appelez-nous -
8 D7726590 Wire-jumper Appelez-nous -
9 10131801 Cover-elect Brkt Appelez-nous -
10 WP10533003 Switch, Limit (ice Disp)   (Replaces: 10533003) Special Order $ 73.29

11 10131701 Socket, Light Appelez-nous -
12 10533001 Switch, Limit Special Order $ 14.43

13 D7726593 Wire Jumper Appelez-nous -
14 10323305 Bracket, Elec Mtg Appelez-nous -
15 10166002 Switch-crushed/cube Appelez-nous -
16 M0237809 Screw, T.f. Appelez-nous -
17 M0216517 Screw Appelez-nous -
18 A3030357 Gasket Appelez-nous -
19 10984615 Insert-gy Facade Appelez-nous -
20 D7750608 Grille, Sump (satin) Appelez-nous -
21 10986104 Facade-gy Disp Appelez-nous -
22 W10857122 Light Bulb   (Replaces: M0360001) Special Order $ 14.52

23 A1061501 Pin, Chute Door Appelez-nous -
24 A1061601 Retainer, Ice Arm Appelez-nous -
25 B8380701 Insulation, Chute Door Appelez-nous -
26 B8380801 Brkt-chute Door Appelez-nous -
27 B8380901 Spring,chute Door Special Order $ 7.18

28 B8385401 Spring, Return Appelez-nous -
29 12043805 Cap-grey Switch Appelez-nous -
30 B8390301 Clip, Facade Appelez-nous -
31 C8972501 Retainer Door Delay Appelez-nous -
32 C8973601 Delay, Door Appelez-nous -
33 10876006 Cavity, Disp (gray) Appelez-nous -
34 10246601 Kit,chute Dr No.3 Appelez-nous -
35 10872003 Arm, Ice Actuator Appelez-nous -
36 10872103 Arm-wtr. Actuator W Appelez-nous -
37 10882106 Heater-cavity Appelez-nous -
38 M0211116 Screw, Sm Appelez-nous -
39 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

40 D7726592 Wire-jumper Appelez-nous -
41 M0234003 Screw Appelez-nous -
42 D7854104 Switch-photosensitive Appelez-nous -
43 M0217701 Screw Appelez-nous -
44 M0311601 Plug, Button Appelez-nous -
45 12044501 Gasket-ice Chute Appelez-nous -
46 10166101 Switch-light Cavity Special Order $ 6.49

47 10941501 Insul, Batt Appelez-nous -
NI R0156692 Kit,chute Dr No.3 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

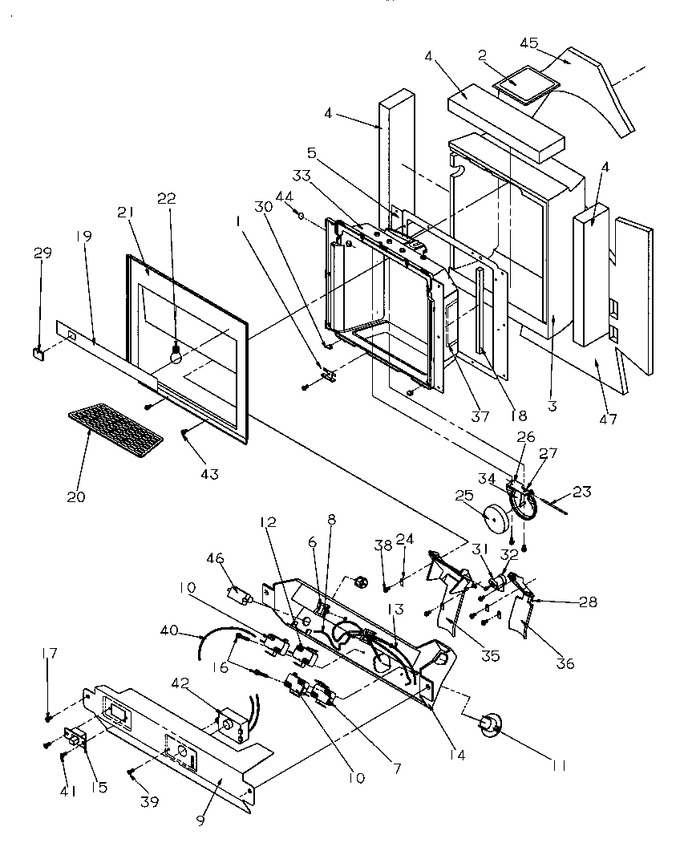

Diagram for GSDE3201SW (BOM: P1190901W W)
