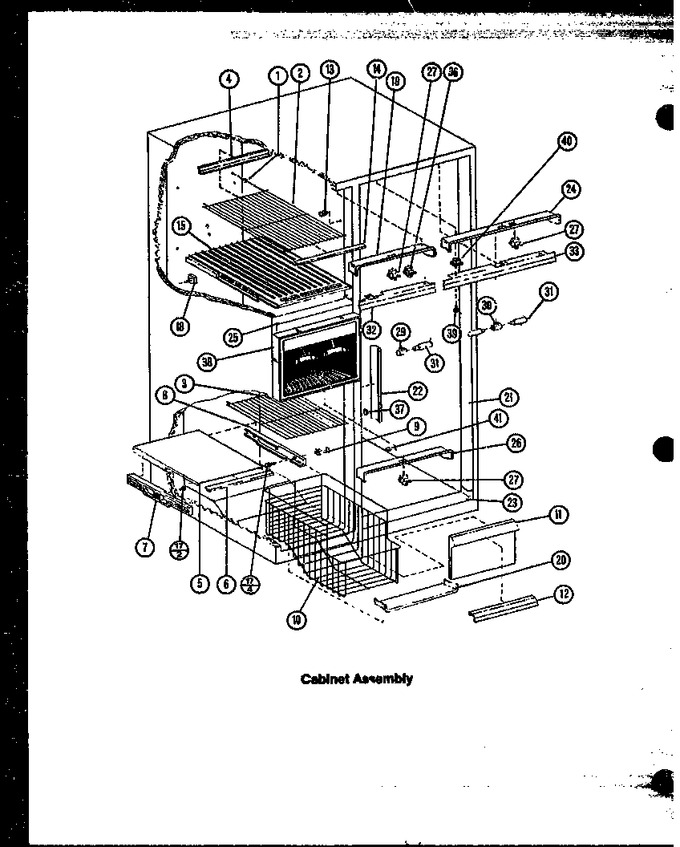

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0055352 | Plug |
|
- | |||||
| 2 | 0055583 | Shelf |
|
- | |||||
| 3 | 0055584 | Shelf |
|
- | |||||
| 4 | Y0055557 | (+) Trim Shelf Fr,gg |
|
- | |||||
| 5 | 55441 | Tube, Burner |
|
- | |||||
| 5 | 0311725 | Glass Shelf |
|
- | |||||
| 6 | 0055399 | Use B0596611 |
|
- | |||||
| 7 | 0055565 | Glide Basket-l K |
|
- | |||||
| 8 | 0055566 | Use D7442902 |
|
- | |||||
| 9 | 0056329 | Use M0580009 |
|
- | |||||
| 10 | 0055552 | Use D7363601 |
|
- | |||||
| 11 | 0055563 | Use D7419605 |
|
- | |||||
| 12 | 55494 | Orifice,inner No.40 |
|
- | |||||
| 13 | 55398 | Label,dryer Door Xreplace |
|
- | |||||
| 14 | 0055473 | Trim Shelf K |
|
- | |||||
| 15 | Y0055591 | Shelf |
|
- | |||||
| 17 | 56268 | Crate,cap |
|
- | |||||
| 18 | 0055415 | Support |
|
- | |||||
| 19 | 0055522 | Use D3953104 |
|
- | |||||
| 20 | 0055520 | Use D3952402 |
|
- | |||||
| 21 | 0055573 | Use D7510802 |
|
- | |||||
| 22 | 0055576 | Breaker |
|
- | |||||
| 22 | 0055575 | Use D7511002 |
|
- | |||||
| 22 | 0055574 | Breaker Frame |
|
- | |||||
| 23 | 0055521 | Use D3952603 |
|
- | |||||
| 24 | 0056366 | Breaker Frame |
|
- | |||||
| 25 | 0056367 | Breaker Frame |
|
- | |||||
| 26 | 0056368 | Breaker Frame |
|
- | |||||
| 27 | 54153 | Light Switch |
|
- | |||||
| 29 | Y0056369 | Socket |
|
- | |||||
| 30 | Y0056370 | Socket-light |
|
- | |||||
| 31 | Y0056371 | Use A3079001 |
|
- | |||||
| 32 | Y0056372 | Light Shield |
|
- | |||||
| 33 | Y0056373 | Light Shield |
|
- | |||||
| 36 | Y0056374 | Switch |
|
- | |||||
| 37 | 0056375 | Clip |
|
- | |||||
| 38 | 0056376 | Use D7700536 |
|
- | |||||
| 39 | WP90767 | Screw, Sm (Replaces: Y0056267) |
|
Immediately | $ 7.43 | ||||
| 40 | 0056329 | Use M0580009 |
|
- | |||||
| 41 | Y0056377 | Clip |
|
- |
