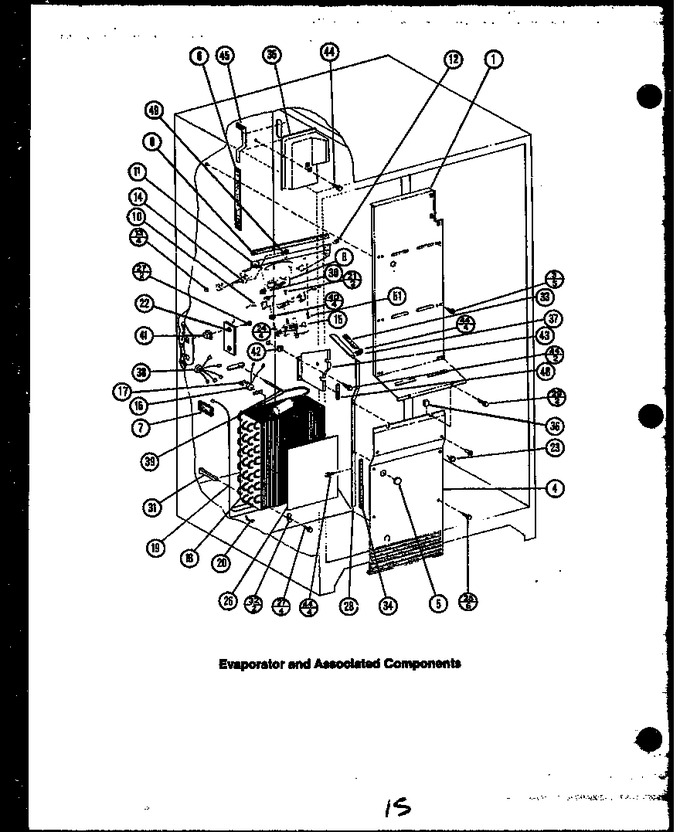

06 - Evap And Associated Components


07 - Facade Assy And Associated Components


08 - Ice Maker Assy


09 - Ice Maker Components


10 - Lower Fz Door


11 - Page 1


12 - Ref Door Assy


13 - Ref Trim Kits-xrh 124 & 125


14 - Ref Trim Kits-xrh 224 & 225


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0055570		Baffle, Frz Door		Appelez-nous	-
3	Y0056381		Screw-sm		Appelez-nous	-
4	55571		Cover, Evaporator		Appelez-nous	-
5	54192		Plug		Appelez-nous	-
6	55452		Plug		Appelez-nous	-
7	Y0055443		Air Block		Appelez-nous	-
8	Y0055474		Fan-evap		Appelez-nous	-
9	0055432		Use B5757702		Appelez-nous	-
10	0055485		Use C8829701		Appelez-nous	-
11	Y0055553		Plate, Fan Motor		Appelez-nous	-
12	Y56320		Manual,installation		Appelez-nous	-
13	Y0055351		Sub 91866, Grommet Rubber		Appelez-nous	-
14	0056380		Sub 91867, Eyelet		Appelez-nous	-
15	Y0055546		Motor		Appelez-nous	-
16	WPC8972006		Thermostat Tri 111   (Replaces: Y0055501)				$ 101.23
17	Y0055449		Clip Thermostat K		Appelez-nous	-
18	Y56344		Manual, Operation		Appelez-nous	-
19	Y0055569		Heater-evap		Appelez-nous	-
20	0055447		Clip-heater		Appelez-nous	-
21	56303		Timer,120/60		Appelez-nous	-
22	0055450		Term Board		Appelez-nous	-
23	0056321		Plug Button		Appelez-nous	-
24	56270		Crate,top Support		Appelez-nous	-
25	67006425		Screw, Sm   (Replaces: Y0056286)			Immediately	$ 6.57
26	0055451		Gasket, Evap.		Appelez-nous	-
27	56268		Crate,cap		Appelez-nous	-
28	Y0055556		Angle-evap Cover		Appelez-nous	-
28	0055555		Use C8927001		Appelez-nous	-
29	56281		Nut,union		Appelez-nous	-
30	Y0056328		Grommet, Screw		Appelez-nous	-
31	Y0055486		Grommet		Appelez-nous	-
32	55437		Assy,burner		Appelez-nous	-
33	55434		Bracket		Appelez-nous	-
34	Y0055433		Gasket		Appelez-nous	-
35	0055374		Use A3187701		Appelez-nous	-
36	55448		Bracket,igniter Xreplace		Appelez-nous	-
37	D510099		Igniter,80 Volt   (Replaces: 55438)				$ 45.40
38	Y0055599		Harness, Liner		Appelez-nous	-
39	0055592		Use D7646501 Ht Exchanger		Appelez-nous	-
40	Y55390		Grommet		Appelez-nous	-
41	56327		Sticker		Appelez-nous	-
42	0056329		Use M0580009		Appelez-nous	-
43	55500		Block, Air Coil		Appelez-nous	-
44	WP90767		Screw, Sm   (Replaces: Y0056267)			Immediately	$ 7.43
45	Y0055446		Gasket Air Tunnel		Appelez-nous	-
48	0056382		Use B5757703		Appelez-nous	-
49	56269		Crate,corner Post		Appelez-nous	-
51	0056290		Use M0233104		Appelez-nous	-
