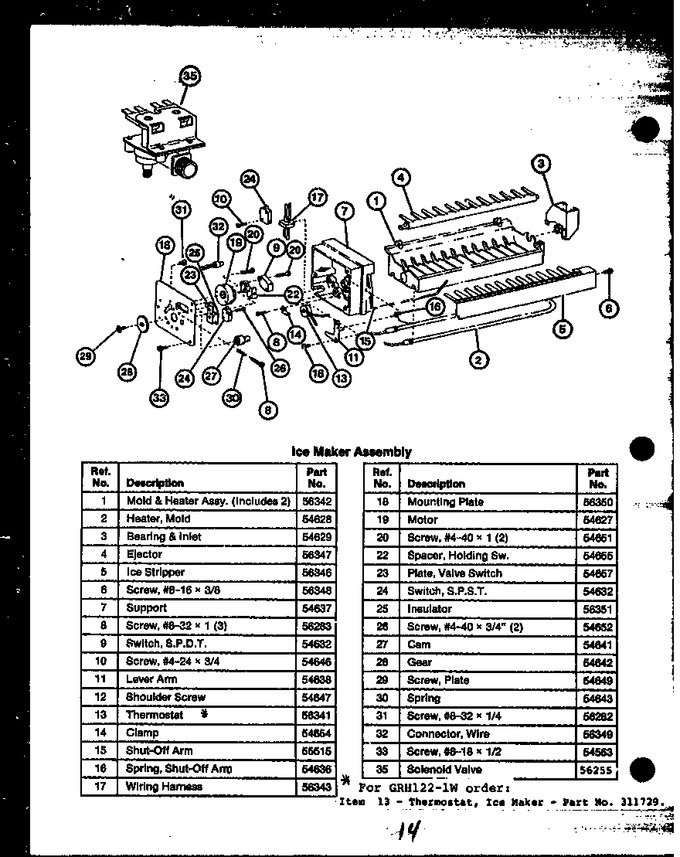

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0056342		Assy, Mold & Heater		Appelez-nous	-
2	Y0054628		Kit		Appelez-nous	-
3	54629		Bearing And Inlet		Appelez-nous	-
4	56347		Knob, Timer (used)		Appelez-nous	-
5	Y56346		Manual, Operation		Appelez-nous	-
6	56348		Skirt,timer Knob (used)		Appelez-nous	-
7	54637		Support		Appelez-nous	-
8	56283		Oil,exxon Terrestic No.68		Appelez-nous	-
9	Y0054632		Switch, Spot		Appelez-nous	-
10	0054646		Screw		Appelez-nous	-
11	0054638		Lever Arm		Appelez-nous	-
12	54647		Screw		Appelez-nous	-
13	Y0056341		Thermostat		Appelez-nous	-
13	Y0311729		Thermostat		Appelez-nous	-
14	54654		Manual, Operating		Appelez-nous	-
15	0055515		Use C8954101		Appelez-nous	-
16	Y0054636		Spring, Shut-off		Appelez-nous	-
17	56343		Manual, Operation		Appelez-nous	-
18	0056350		Use R0194212		Appelez-nous	-
19	Y0054627		Motor		Appelez-nous	-
20	54651		Manual, Operating		Appelez-nous	-
22	Y54655		Spacer, Switch		Appelez-nous	-
23	54657		Plate, Valve Switch		Appelez-nous	-
24	Y0054632		Switch, Spot		Appelez-nous	-
25	Y56351		Spring, Timer Knob (used)		Appelez-nous	-
26	54652		Manual, Operating		Appelez-nous	-
27	Y0054641		Cam		Appelez-nous	-
28	Y0054642		Gear		Appelez-nous	-
29	54649		Screw -		Appelez-nous	-
30	54643		Spring		Appelez-nous	-
31	56282		Nipple		Appelez-nous	-
32	0056349		Use R0189030		Appelez-nous	-
33	Y54563		Rivet, Pop		Appelez-nous	-
35	Y0056255		Water Valve 627966 K		Appelez-nous	-
