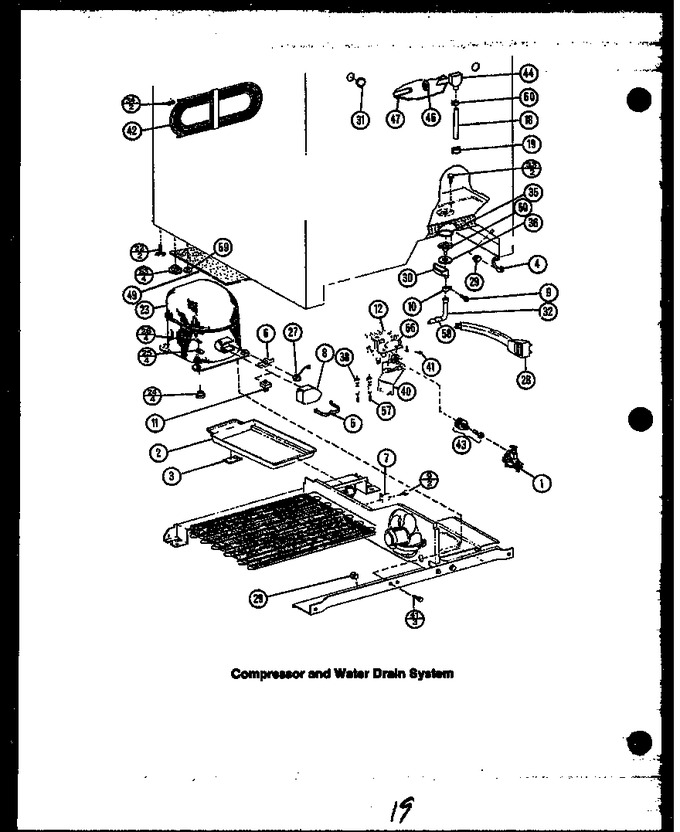

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0054189 | Use A3034801 |
|
- | |||||
| 2 | 55523 | Thermostat |
|
- | |||||
| 3 | 54340 | Pad, Drain Pan |
|
- | |||||
| 4 | Y90549 | Strain Relief |
|
- | |||||
| 5 | 54190 | Strap |
|
- | |||||
| 6 | 54425 | Spring, Overload |
|
- | |||||
| 7 | 0055366 | Stop,drain Pan |
|
- | |||||
| 8 | 54325 | Cover, Terminal |
|
- | |||||
| 9 | WP90767 | Screw, Sm (Replaces: Y0056267) |
|
Immediately | $ 7.43 | ||||
| 10 | 56260 | Timer |
|
- | |||||
| 11 | Y0055462 | Relay |
|
- | |||||
| 12 | Y0056255 | Water Valve 627966 K |
|
- | |||||
| 18 | Y0055424 | Tube, Plastic (wvalve To I/m |
|
- | |||||
| 19 | WPM0104106 | Clip, Cord (Replaces: Y0090281) |
|
$ 7.35 | |||||
| 22 | Y54608 | Light Bulb |
|
- | |||||
| 23 | 30-FF10HBK1 | Compressor Ae1410a (Replaces: 0056256) |
|
$ 750.38 | |||||
| 24 | 54187 | Grommet, Compressor Mounting |
|
- | |||||
| 25 | 0056333 | Washer, Nylon K |
|
- | |||||
| 26 | 0054305 | Clip K |
|
- | |||||
| 27 | 0055499 | Overload |
|
- | |||||
| 28 | 0056340 | Power Cord |
|
- | |||||
| 29 | Y0088480 | Clip-cable |
|
- | |||||
| 30 | 0055479 | Drain Cup |
|
- | |||||
| 31 | 54194 | Plug Button |
|
- | |||||
| 32 | 0055384 | Drain Tube |
|
- | |||||
| 33 | 54600 | Screw - |
|
- | |||||
| 34 | WP4373559 | Union K (Replaces: Y0055425) |
|
$ 73.10 | |||||
| 35 | 212643 | Sealer-per Lb (Replaces: Y0056315) |
|
Immediately | $ 86.78 | ||||
| 36 | 55435 | Bracket,igniter |
|
- | |||||
| 38 | Y0056334 | Nut, Sleeve |
|
- | |||||
| 38 | 0056335 | Sub 56535, Screw |
|
- | |||||
| 40 | Y0054539 | Brkt, Water Valve |
|
- | |||||
| 41 | 681390 | Screw (Replaces: Y0054605) |
|
$ 12.34 | |||||
| 42 | Y0056253 | Tank, Coil Water |
|
- | |||||
| 43 | Y0054196 | Coupling |
|
- | |||||
| 44 | Y0055445 | Fill Tube Assy |
|
- | |||||
| 46 | Y55370 | Grommet, Fill Tube |
|
- | |||||
| 47 | 55367 | Manual, Operation |
|
- | |||||
| 49 | 0055579 | Insulation M.c. A-k |
|
- | |||||
| 50 | 0055554 | Use D7384701 |
|
- | |||||
| 53 | 54195 | Plug Button |
|
- | |||||
| 56 | 54389 | Clip, Water Valve |
|
- | |||||
| 57 | Y0055355 | Sue A1055102 |
|
- | |||||
| 57 | Y0054186 | Spring, Anti Kink |
|
- | |||||
| 58 | Y0054183 | Insul Tubing 1=12`` |
|
- | |||||
| 58 | Y0311727 | Insulation, Tube |
|
- | |||||
| 59 | 54192 | Plug |
|
- | |||||
| 60 | WP27001200 | Hex Head Screw (Replaces: 56264) |
|
$ 7.25 |
