Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0055470 Use C3694101 Appelez-nous -
3 Y0055548 Hinge Appelez-nous -
4 WP67006715 Screw   (Replaces: Y0054604) Special Order $ 6.80

5 0055386 Shim Appelez-nous -
5 0055385 Shim Kit Appelez-nous -
6 Y0055373 Shim Appelez-nous -
6 0055372 Shim Appelez-nous -
7 0056358 Gasket,lower Fz Appelez-nous -
8 0056359 Use D7025109 Appelez-nous -
8 0056360 Use D7025110 Appelez-nous -
8 0055531 Retainer Gasket Appelez-nous -
9 56278 Thermostat Appelez-nous -
10 Y55528 Manual, Operation Appelez-nous -
11 56338 Manual,install/opera Appelez-nous -
12 0055410 Cover Appelez-nous -
13 0055413 Sub 56051, Insulation, Batt Appelez-nous -
14 0055412 Sub 56051, Insulation, Batt Appelez-nous -
15 0055411 Sub 56051, Insulation, Batt Appelez-nous -
16 0056361 Use B5612010 Appelez-nous -
17 Y0055497 Bearing-hinge Appelez-nous -
18 54411 Shaft,idler Lever Appelez-nous -
22 0055595 Use D7677701 Appelez-nous -
25 0056362 Use D7512105 Appelez-nous -
25 Y0310907 Door Handle Appelez-nous -
26 0055543 Use D7204902 Appelez-nous -
27 0055544 Use D7204904 Appelez-nous -
28 8169479 Screw   (Replaces: Y0056276) Special Order $ 6.57

29 56363 Manual,install/opera Appelez-nous -
30 0055505 Use C8886802 Appelez-nous -
31 Y0056273 Screw A K Appelez-nous -
32 Y0055391 Insulation (1 = 1ft.) Appelez-nous -
33 Y0056251 Door Lr Fr W Gg Appelez-nous -
35 56259 Sticker Appelez-nous -
38 Y0055379 Tap Strip-ladder Appelez-nous -
40 0055406 End Cap White A Appelez-nous -
40 0055407 End Cap White A Appelez-nous -
41 310910W Panel White Glass Appelez-nous -
41 Y0055482 Panel Black Glass Appelez-nous -
42 55508 Manual, Operation In-Stock Immediately $ 9.50

43 0055560 Use D7415737 Appelez-nous -
44 Y0056275 Screw K Appelez-nous -
45 Y0056309 Washer K Appelez-nous -
46 0055461 Use B8393301 Appelez-nous -
47 WP90767 Screw   (Replaces: Y0056277) In-Stock Immediately $ 7.43


    View Diagram in Separate Window     Print Icon   Print Part List

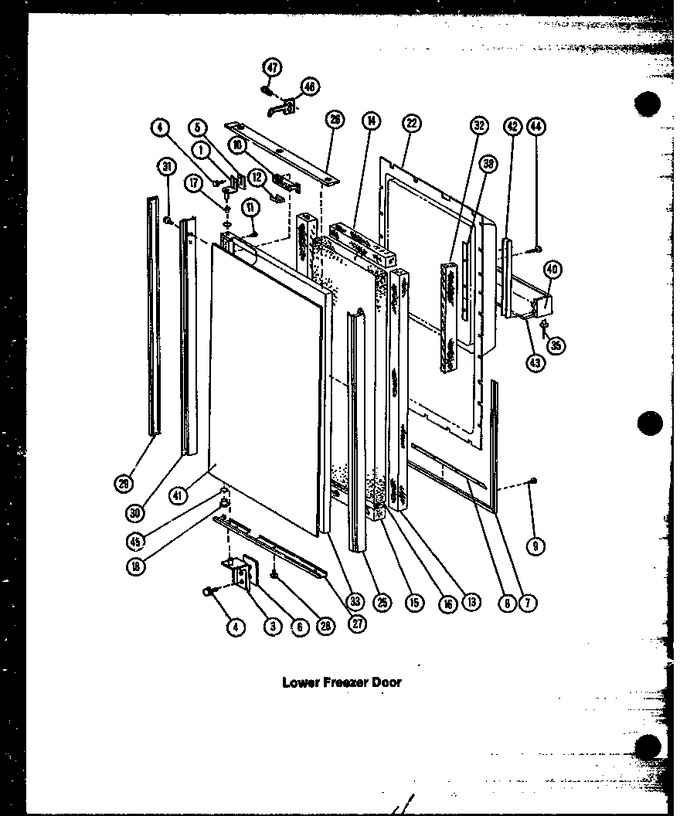

Diagram for GRH1221W
