01 - Cabinet Assy


02 - Compressor And Water Drain System


03 - Condenser And Associated Components


04 - Control Sections And Air Flow Components

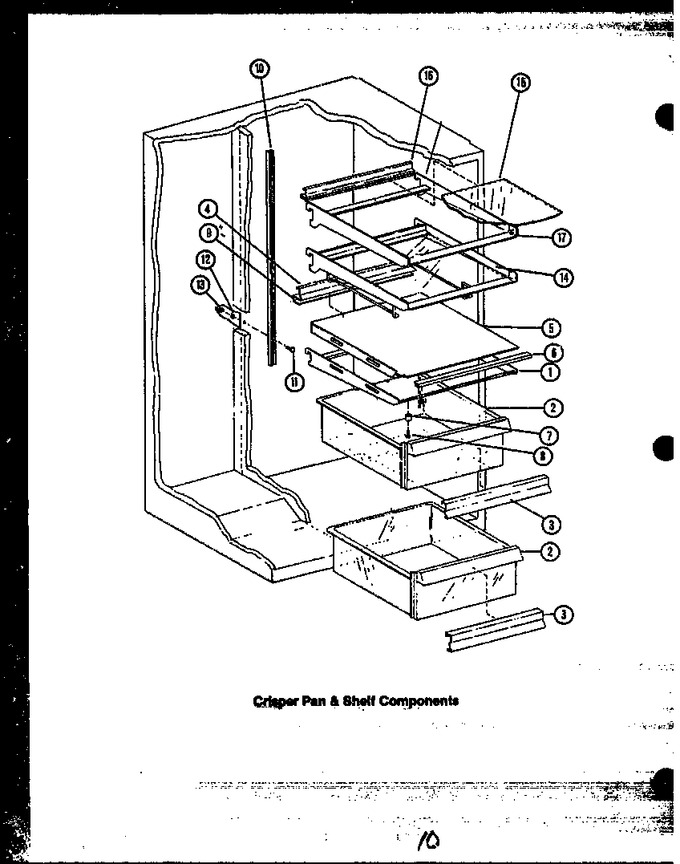

05 - Crisper Pan & Shelf Components


06 - Evap And Associated Components


07 - Facade Assy And Associated Components


08 - Ice Maker Assy


09 - Ice Maker Components


10 - Lower Fz Door


11 - Page 1


12 - Ref Door Assy


13 - Ref Trim Kits-xrh 124 & 125


14 - Ref Trim Kits-xrh 224 & 225


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0055588		(+) Frame Fr,ph,gg		Appelez-nous	-
1	0055587		Frame, Crisper Pan Top		Appelez-nous	-
2	55550		Crisper Pan		Appelez-nous	-
3	0055489		Use C8831717		Appelez-nous	-
3	0055490		Use C8831718		Appelez-nous	-
4	Y0055491		Trim, Crisper Top, Rear		Appelez-nous	-
5	55519		Manual, Operation		Appelez-nous	-
6	Y0055396		Trim, Crisper Top		Appelez-nous	-
7	0055381		Use A3213402		Appelez-nous	-
8	Y56285		Roller, Cylinder		Appelez-nous	-
9	0056312		Sub 89993,tape,double Sided,5`		Appelez-nous	-
10	Y55535		Ladder, Cantilever		Appelez-nous	-
11	0056304		Stud		Appelez-nous	-
12	Y0056306		Washer		Appelez-nous	-
13	0056316		Use M0281003		Appelez-nous	-
14	Y56345		Manual,operation		Appelez-nous	-
15	0055440		Use B8303604		Appelez-nous	-
16	Y0055488		Trim-shelf A		Appelez-nous	-
17	Y0055551		Trim, Shelf, Front		Appelez-nous	-
NI	55480		Sticker		Appelez-nous	-
