Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0310893 Side Trim, 25`` Cabinet Appelez-nous -
1 Y0310891 Side Trim, 24`` Cabinet Appelez-nous -
1 58871-B Side Trim, Xrh 125 Appelez-nous -
1 58866-B Side Trim, Xrh 124 Appelez-nous -
2 Y0058870 Trim Gasket Appelez-nous -
3 Y0310894 Top Trim, 25`` Cabinet Appelez-nous -
3 Y0310892 Top Trim, 24`` Cabinet Appelez-nous -
3 Y0058867 Top Trim, 24`` Cab. Appelez-nous -
3 58872 Top Trim, Xrh 125 Appelez-nous -
4 WPY706189 Metal Screw 8ax3/8 Ph Tr Bk   (Replaces: Y0041794) In-Stock Immediately $ 6.80


    View Diagram in Separate Window     Print Icon   Print Part List

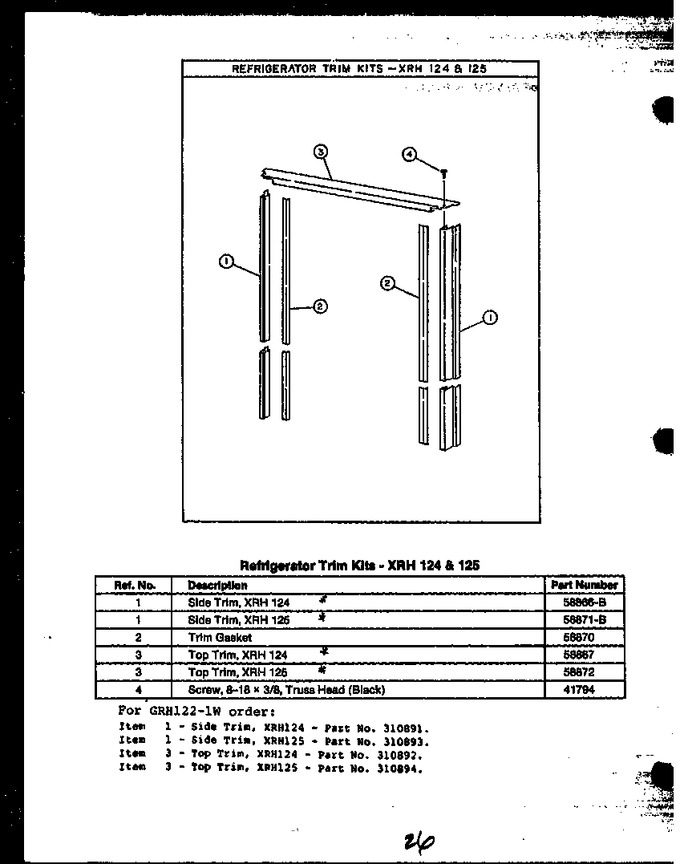

Diagram for GRH1221W
