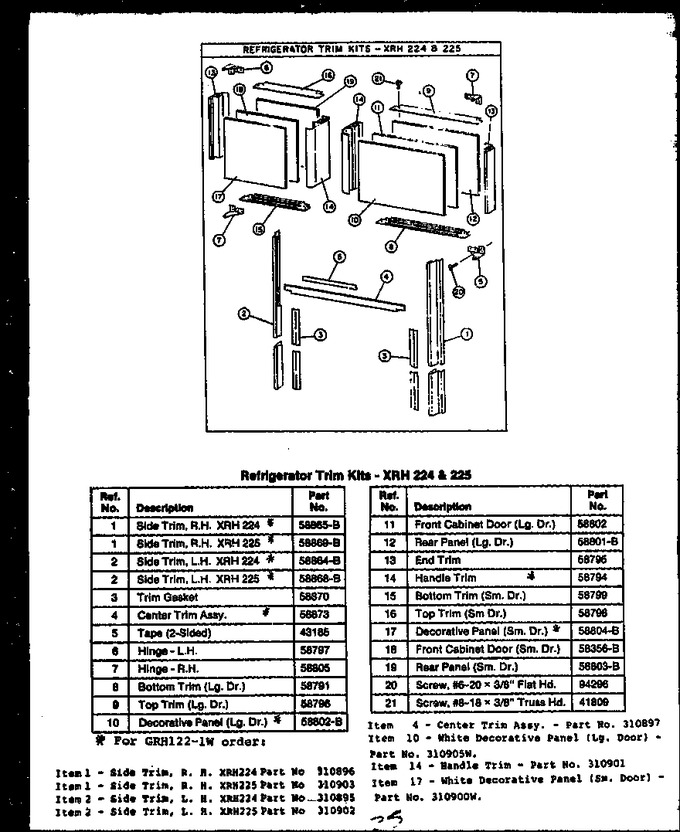

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0310903 | Side Trim-rh, 25`` Cabinet |
|
- | |||||
| 1 | Y0310896 | Side Trim-rh, 24`` Cabinet |
|
- | |||||
| 1 | 58869-B | Side Trim, R.h. Xrh 225 |
|
- | |||||
| 1 | 58865-B | Side Trim, R.h. Xrh 224 |
|
- | |||||
| 2 | Y0310895 | Side Trim-lh, 24`` Cabinet |
|
- | |||||
| 2 | 58868-B | Side Trim, L.h. Xrh 225 |
|
- | |||||
| 2 | 58864-B | Side Trim, L.h. Xrh 224 |
|
- | |||||
| 3 | Y0058870 | Trim Gasket |
|
- | |||||
| 4 | Y0058873 | Sub 58874b, Center Trim |
|
- | |||||
| 5 | Y0043185 | Tape, Foam, Double Coat (roll) |
|
- | |||||
| 6 | 58797 | Hinge - L.h. |
|
- | |||||
| 7 | Y0058805 | Hinge, Rh |
|
- | |||||
| 8 | Y0058791 | Bottom, Door Trim, Cabinet |
|
- | |||||
| 9 | 58796 | Trim,door |
|
- | |||||
| 10 | 310905W | Decorative Panel, White |
|
- | |||||
| 10 | 58802-B | Decorative Panel |
|
- | |||||
| 11 | Y0058802 | Decorative Panel |
|
- | |||||
| 12 | 58801-B | Rear Panel |
|
- | |||||
| 13 | Y0058795 | End Trim |
|
- | |||||
| 14 | 0310901 | Trim, Handle |
|
- | |||||
| 14 | 58794 | Elbow,street-1/8 |
|
- | |||||
| 15 | 58799 | Connector,2 Circuit |
|
- | |||||
| 16 | Y0058798 | Top, Door Trim, Cabinet |
|
- | |||||
| 17 | 58804-B | Decorative Panel |
|
- | |||||
| 17 | 310900W | Decorative Panel |
|
- | |||||
| 18 | 58356-B | Front Cabinet Door |
|
- | |||||
| 19 | 58803-B | Rear Panel |
|
- | |||||
| 20 | Y0094296 | Screw 6x3/8 Phil Flt Hd |
|
- | |||||
| 21 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
