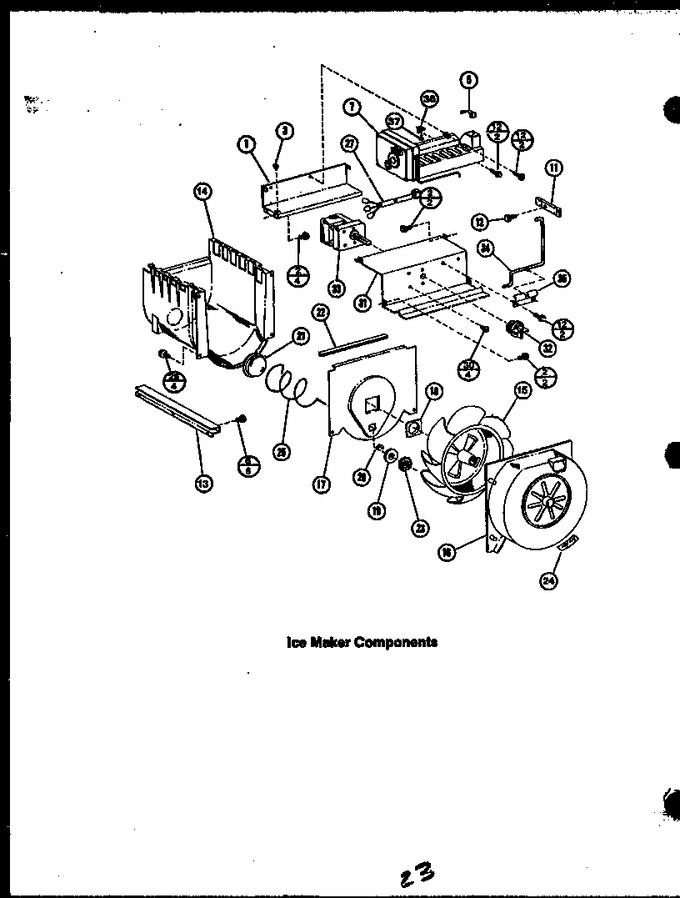

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0055589		I M Bracket		Appelez-nous	-
2	67006425		Screw, Sm   (Replaces: Y0056286)			Immediately	$ 6.57
3	0056330		Grommet		Appelez-nous	-
5	WP338906		Sensor   (Replaces: 55428)			Immediately	$ 46.72
6	WP90767		Screw   (Replaces: Y0056277)			Immediately	$ 7.43
7	0056254		Kit, Icemaker		Appelez-nous	-
11	0055484		Arm-detent		Appelez-nous	-
12	56268		Crate,cap		Appelez-nous	-
13	0055510		Use C8941002		Appelez-nous	-
14	Y0055585		Ice Bucket A		Appelez-nous	-
15	Y0055540		Wheel-lift A		Appelez-nous	-
16	0055539		Use D7192602		Appelez-nous	-
17	Y0055538		Partition Panel A		Appelez-nous	-
18	Y0055419		Bushing A		Appelez-nous	-
19	Y0055421		Bushing A		Appelez-nous	-
20	0056310		Use M0274601		Appelez-nous	-
21	0055468		Use C3692901		Appelez-nous	-
22	0055383		Strip A		Appelez-nous	-
23	Y0055420		Gear Pinion A		Appelez-nous	-
24	56311		Assy,wiring Harness-co		Appelez-nous	-
25	55469		Screw, 8b-16x5/8 Tap		Appelez-nous	-
26	56269		Crate,corner Post		Appelez-nous	-
27	0055514		Use C8951201		Appelez-nous	-
30	WP489128		Screw   (Replaces: Y0056298)				$ 10.26
31	0055596		Use D7679502		Appelez-nous	-
32	Y0055476		Drive Link		Appelez-nous	-
33	0055487		Motor		Appelez-nous	-
34	0055483		Shut Off Arm		Appelez-nous	-
35	Y0055417		Holder-shut Off Arm		Appelez-nous	-
36	Y55460		Support		Appelez-nous	-
37	88487		Screw -		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
