Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 56352 Knob,timer Appelez-nous -
2 0056353 Screw Appelez-nous -
3 0056354 Hinge, Center Appelez-nous -
4 0054316 Use A3270303 Appelez-nous -
5 R9800670 Kit, Screw   (Replaces: Y0056302) Special Order $ 9.52

6 0055385 Shim Kit Appelez-nous -
6 0055386 Shim Appelez-nous -
7 0055549 Gasket,upper Fz Appelez-nous -
8 0055531 Retainer Gasket Appelez-nous -
8 0055532 Use D7025108 Appelez-nous -
8 0055533 Use D7025107 Appelez-nous -
9 56278 Thermostat Appelez-nous -
10 Y55528 Manual, Operation Appelez-nous -
11 56338 Manual,install/opera Appelez-nous -
12 0055410 Cover Appelez-nous -
13 0056355 Sub 56051, Insulation Batt Appelez-nous -
14 0055412 Sub 56051, Insulation, Batt Appelez-nous -
15 0055411 Sub 56051, Insulation, Batt Appelez-nous -
16 0055403 Use B5612009 Appelez-nous -
17 Y0055497 Bearing-hinge Appelez-nous -
18 54411 Shaft,idler Lever Appelez-nous -
21 0055543 Use D7204902 Appelez-nous -
22 0055545 Use D7212301 Appelez-nous -
23 8169479 Screw   (Replaces: Y0056276) Special Order $ 6.57

24 Y0055401 Trim Appelez-nous -
25 0055505 Use C8886802 Appelez-nous -
26 Y0056273 Screw A K Appelez-nous -
27 0055371 Use A3139802 Appelez-nous -
28 0056356 Use D7535801 Appelez-nous -
30 0310908 Use R0179213 Appelez-nous -
30 0055578 Handle, Door Appelez-nous -
31 Y0056357 Door, Upper Frz (white) Appelez-nous -
32 Y0055391 Insulation (1 = 1ft.) Appelez-nous -
35 0055406 End Cap White A Appelez-nous -
35 0055407 End Cap White A Appelez-nous -
36 310909W Panel White Glass Appelez-nous -
36 55481 Sticker,caution Appelez-nous -
37 0055560 Use D7415737 Appelez-nous -
38 56259 Sticker Appelez-nous -
39 0055461 Use B8393301 Appelez-nous -
40 WP90767 Screw   (Replaces: Y0056277) In-Stock Immediately $ 7.43


    View Diagram in Separate Window     Print Icon   Print Part List

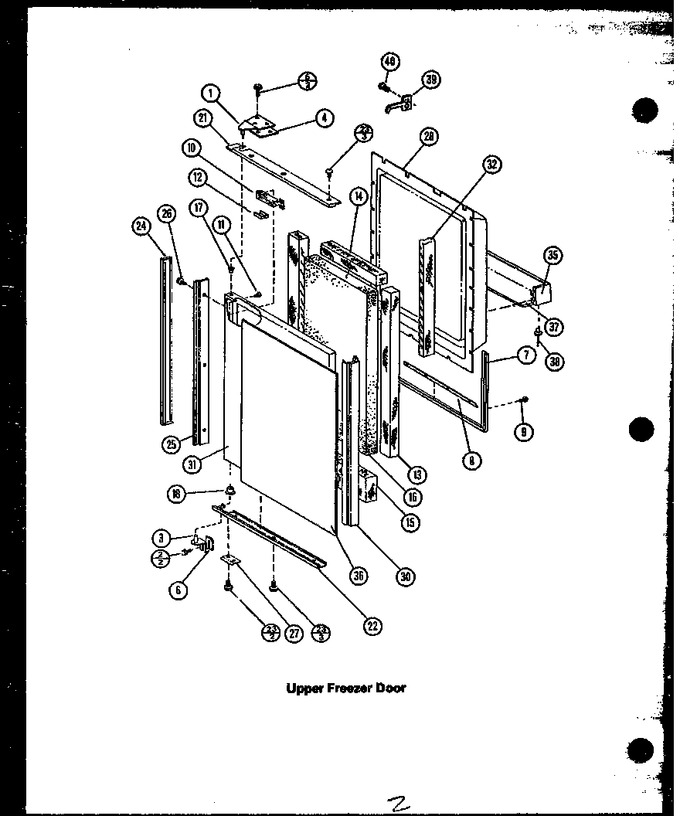

Diagram for GRH1221W
